DosiTex is a device system to the control and supervision of the dosage of washing mediums in laundries.
There is of an industry PC as a control unit, industrial I/O assemblies, sensors and optionally an office PC.
The DosiTex-System has the following properties:
Control or supervision of 4 washing machines with up to 64 pumps
easy creation of up to 10 Dosage programs for the washing machine
retrofit for all washing machines and cleansing machines
Computer based process data acquisition and storage
Dosage events (time and amount)
Alarm with false dosages
Protocol and evaluation of the process data
optional passing on of the process data to a PC
remote maintenance over phone and Windows - standard software
- Controlling function
material and inventory
functionality of the system
wearing of hoses, membranes and pistons
absence of mediums in the storage vessel
pollutions of filters
- Quality management
safety in desinfection
prevention of postwashing
safety in process
dangerous goods order

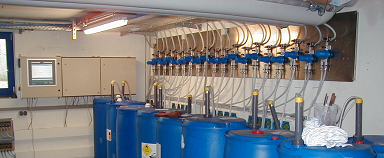

System in practice
DosiTex is flexible!
Variably in the construction, but, nevertheless, individually for every customer fitted.
2 Modes of operation
Standard - Supervision (passive)
controlling of time triggered pumps
Expert - Dosage (active)
controlling of pumps after actual amount
