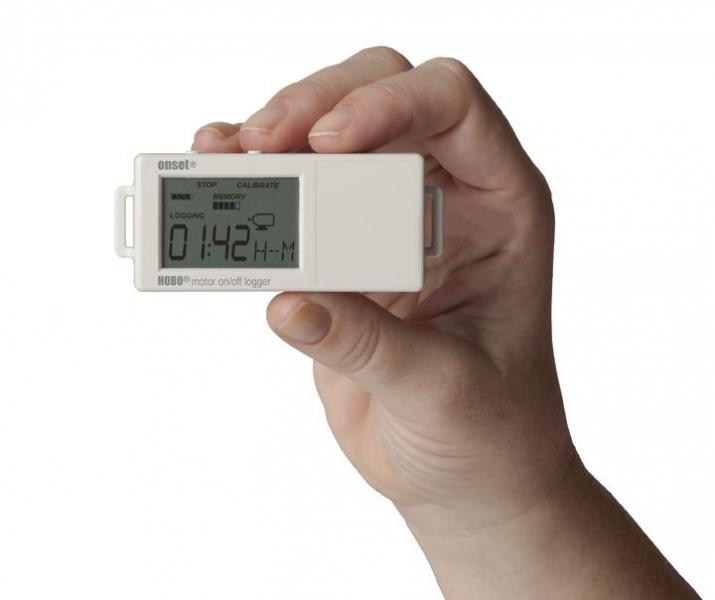

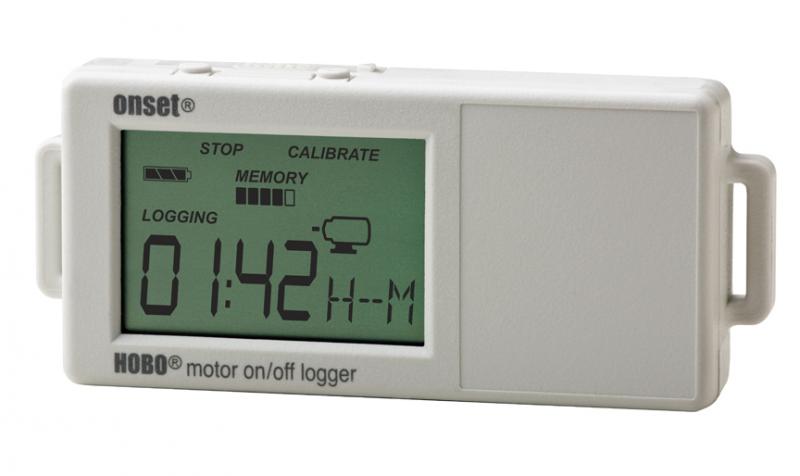

HOBO UX90 Motor On/Off Logger - UX90-004

HOBO UX90 Motor On/Off Logger - UX90-004HOBO UX90 Motor On/Off Logger - UX90-004HOBO UX90 Motor On/Off Logger - UX90-004

IMPORTANT:This HOBO data logger requires HOBOware software and a communications device. See compatible items below.

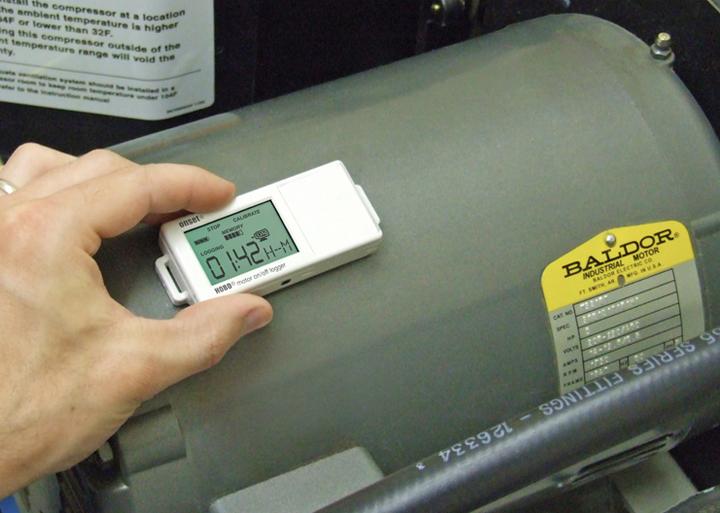

The HOBO Motor On/Offdata loggerrecordsmotoron and off conditions within an AC magnetic field with its internal sensor, or mechanical contact closures from external sensing devices. This data logger is ideal for tracking the usage & runtimes of motors, pumps, compressors, and other equipment. The HOBO UX90-004 Motor On/Off Data Logger is available in a standard 128 KB memory model (UX90-004) capable of 84,650 measurements and an expanded 512KB memory version (UX90-004M) capable of over 346,795 measurements.

  • Dual internal motor sensors gives better sensitivity for well-shielded motors

  • External input for measuring mechanical contact closures when signal strength is low

  • Auto-calibration of ON and OFF thresholds ensures reliable readings

  • Compatible with HOBOware and HOBOware Pro software for logger setup, graphing and analysis

Environment:
The UX90-004 Data Logger is for use inIndoorenvironments

Measurements:
The UX90-004 Data Logger supports the following measurements:

Motor On/Off, Runtime, State Open/Closed
