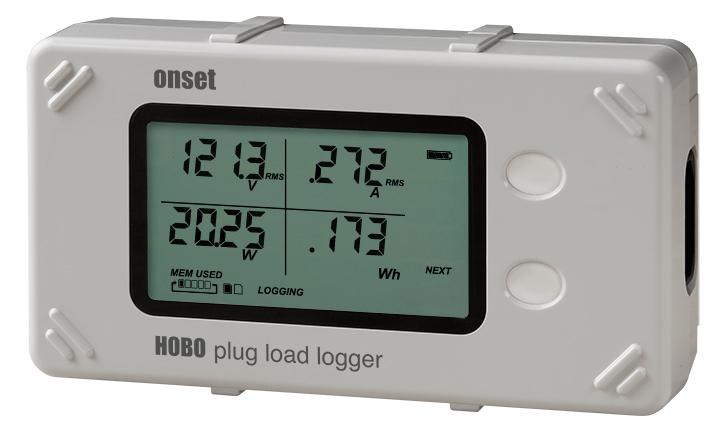

HOBO Plug Load Data Logger

HOBO Plug Load Data Logger

Professional-grade HOBO Plug Load Logger measures power and energy consumption of 120V office equipment plug loads to identify savings opportunities.


View On-demand Webinar

HOBO Plug Load Data LoggerHOBO Plug Load Data LoggerHOBO Plug Load Data Logger

IMPORTANT:This HOBO data logger requires HOBOware software and a communications device. See compatible items below.

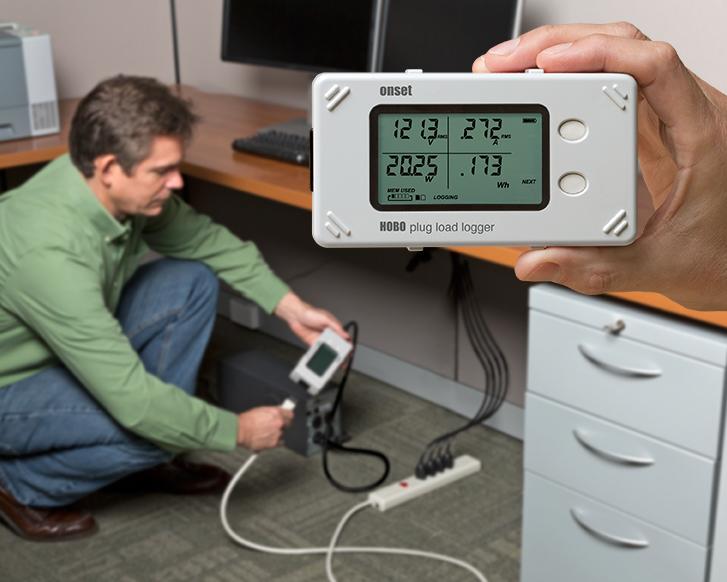

nset's HOBO Plug Load Data Logger is a high-accuracy, easy-to-deploy data logger that measures and records the power and energy consumption of 120V plug loads from office equipment, vending machines, and other devices.

Accurate and Rugged

The UL certified logger provides 0.5% measurement accuracy with a measurement resolution of 1 watt, making it an ideal choice for building audits where detailed energy use data is required. The rugged housing is designed to withstand the rigors of real-world handling, providing reliable performance despite bumps, drops, and use under desks.

Key Advantages

  • 0.5% measurement accuracy enables more reliable plug load energy data

  • "Meter Mode" provides instant viewing of real-time plug load variables

  • Provides time-stamped and totalized load data for detailed energy analysis

  • Large memory enables faster logging intervals for more comprehensive plug load profiles

  • Battery back-up ensures logged data remains intact in the event of a power outage or load failure

  • Full-featured LCD display provides visual diagnostics for easy deployment

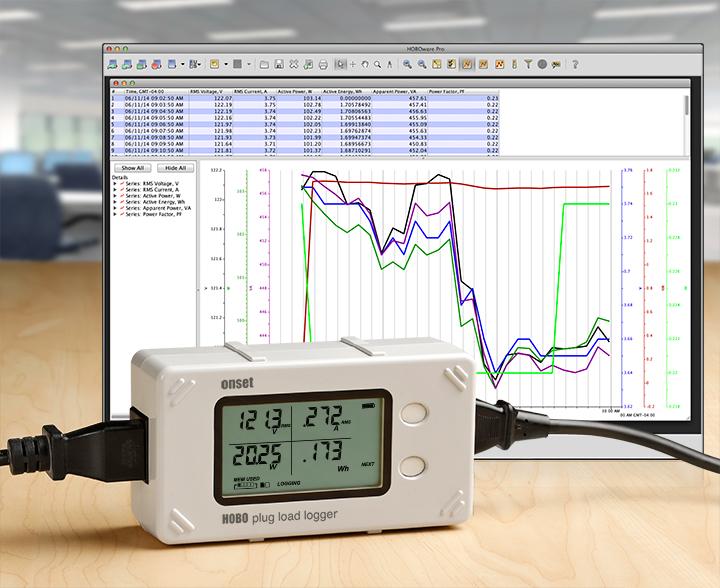

  • Compatible with HOBOware and HOBOware Pro software for logger setup, graphing and analysis

Environment:
The UX120-018 Data Logger is for use inIndoorenvironments

Measurements:
The UX120-018 Data Logger supports the following measurements (some sensors sold separately):

AC Current, AC Voltage, Amps (A), Kilowatt Hours (kWh), Power Factor (PF), Volt-Amps (VA), Volts (V), Watt Hours (Wh), Watts (W)
