Rivers and Channels
Digital Correlation Transit Time Flow Meter
Acoustic Transit-time flow meter

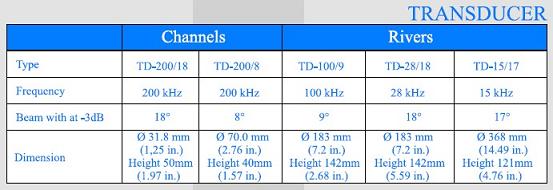

Transducer specifications

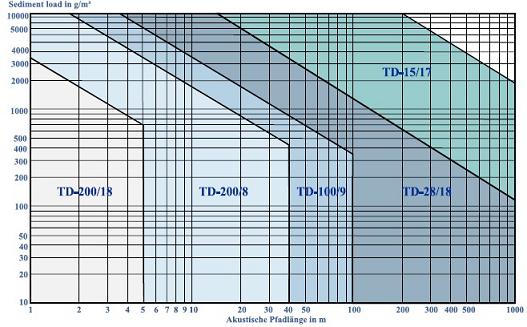

commonly used transducer frequencies for various path lengths and sediment loads.

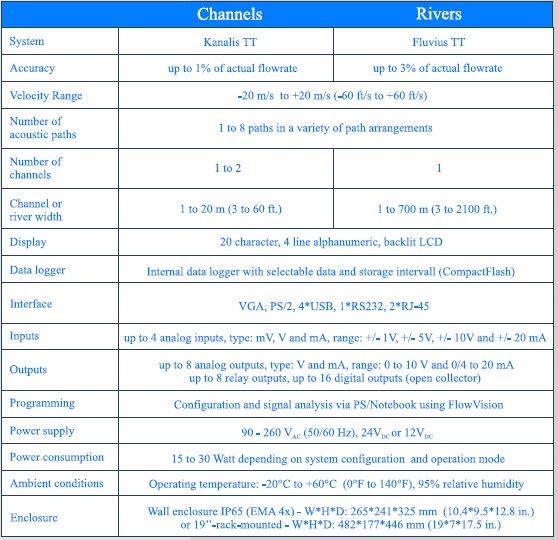

Technical data
System

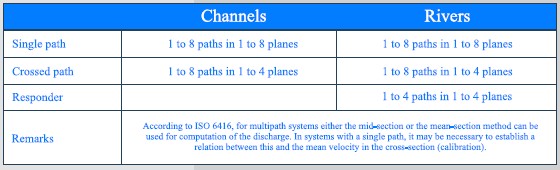

Path arrangement
Producing Area：Germany
