Discharge Measurement in Rivers & Channels

Key Features:
Robust and reliable, (TÜV compliant) even under extreme environmental conditions
Easy mounting
Stationary and portable installations
Unit-composed system, individually configurable



Use with sinker weight    Universal current meter in use



Measuring station       Application with operation terminal

SEBA cable way installation type SKA

The SEBA cable way installation SKA is deployed to measure discharge in rivers and channels. Depending on the kind of waters and the maximum possible current velocity, a suspended current meter equipment, with sinker weights of 25,50 and 100 kg can be used.
For the different fields of application and the different local conditions, several types of cable way installations are available:

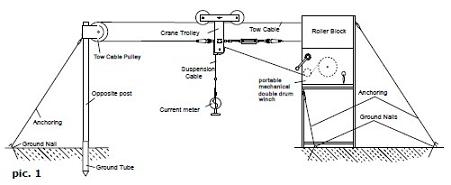

Type SKA-T:completely portable cable way installation for quick mounting at site (pic. 1)

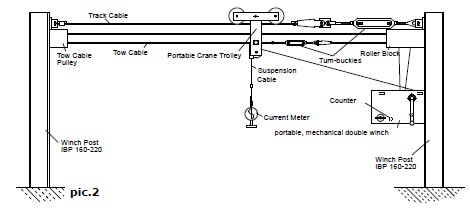

Type SKA-S-T: stationary cable way installation with portable double drum winch and crane trolley. (pic. 2)

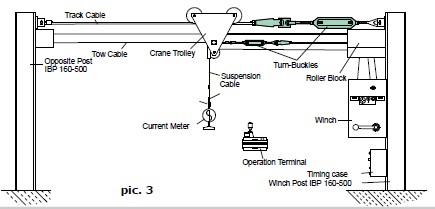

Type SKA-S: stationary cable way installation with tension of track- and tow-cable by turn-buckles (pic. 3)

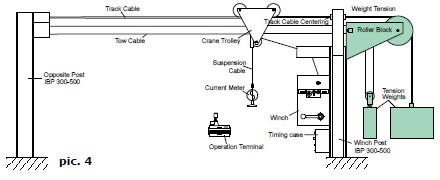

Type SKA-G: stationary cable way installation with tension of track- and tow-cable by weights(pic. 4)

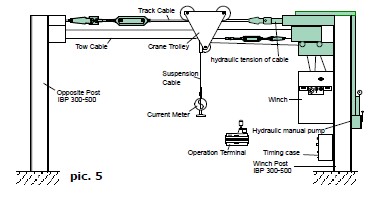

Type SKA-H: stationary cable way installation with hydraulic tension of track-cable and tension of towcable by turn-buckles.(pic. 5)
By means of the double drum winch, the meterbody can be moved horizontally and vertically. The corresponding position of the meterbody can be determined by means of the two counters. So a determination of current velocities from river banks is possible.
Due to the solid construction of the stationary cable way installation, a safe operation is possible even under extreme environmental conditions. (flood, extensive span etc).

Completely portable type

with double drum winch Type SDW-T
Max. span: 50 m
Max. load: 50 kg
for use with sinker weight of max.25 kg

Stationary cable way installation
incl. portable double drum winch Type SDW-T or SDW-TE and turn-buckles with detachable crane trolley.
Max. Span: 50 m
Max. Load: 100 kg
for use with sinker weight of max. 50 kg

Stationary cable way installation
with turn-buckles and double drum winch Type SDW-M or SDW-ESM.
Max. Span: 250 m
Max. Load: 300 kg
or use with sinker weight of max. 100 kg

Stationary Cable Way Installation
Tension with weights and double drum winch type SDW-M or type SDW-ESM.
Max. Span: 250 m
Max. Load: 150 kg
to be used with sinker weight max. 100 kg

Stationary Cable Way Installation
Hydraulic tension and double drum winch type SDW-M or SDW-ESM.
Max. Span: 250 m
Max. Load: 300 kg
to be used with sinker weight max. 100 kg

Main Components of a cable way installation

Double Drum Winch SDW: built with modern non-corrosive parts as a unit-composed system
                                         Following types are available:
                      SDW-T         Portable, mechanical double drum winch (manual operation)
                      SDW-TE       Portable, electrical double drum winch with motor (24V)
                      SDW-M        Mechanical double drum winch (manual operation)
                      SDW-ES       Electrical double drum winch with infinitely variable motor
                      SDW-ESM    Electrical double drum winch with infinitely variable motor and magnet (230V)
Roller Block:                       for operation of the tow-cable with 2 .-fold cable tension, sliding of the cable can be prevented
Tow Cable Pulley:               for mounting at opposite post
Track Cable Fixing:             for winch and opposite post
Crane Trolley:                     solid construction with gummed rollers; with ball bearings
Track cable:                        Ø20 - 24 mm, zinc steel cable acc. to DIN 3060 (not necessary for type SKA-T).
Tow Cable:                         Ø6 mm, zinc steel cable.
Cable posts:                        acc. to span and usage of the cable way installation from IPB 160 - 500.

Portable, mechanical SEBA Double Drum Winch Type SDW-T

Due to the light material and the small dimensions, fixing and dismantling at site is possible without problems. Changing from horizontal to vertical operation (lifting and lowering) by manual operation of the clutch.

Technical Data:
- Distance- and Depths-Counter (4-digits)
- Manual operation with safety clutch
Dimensions:       470 x 130 x 275 mm (L x W x H) without crank
Weight:              20 kg
Operation Side:  right side
Max. Load:         100 kg
Drum Capacity:   max. 60 m suspension cable (other lengths are available as a special version upon request)

pic.6: Portable Double Drum Winch Type SDW-T

Portable Double Drum Winch, electrically driven type SDW-TE

Same construction as type SDW-T but with fitted motor. Operation with generator is possible.

Technical Data:

Electric motor: 0,315kW, 24VDC
Velocity: 0...31cm/s -depending on load
Load: 25...100 kg

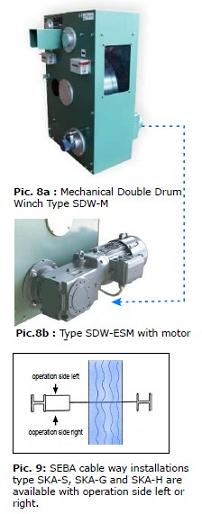

Stationary Double Drum Winches

SDW-M
Mechanical, Stationary Double Drum Winch

Switching from horizontal to vertical operation (lifting and lowering) by manual operation of clutch.

Technical Data:
Manual operation with safety crank Distance- and Depth counter, 5-digits Operation side: on request left or right Mounting: horizontally or vertically

SDW-ES
Electric, Stationary Double Drum Winch

Same construction as SDW-M, but with fitted motor (pic.8b). In case of power failure, manual operation with safety crank is possible. On request equipped with electrical switching of clutch.

Technical Data:

Type SDW-ESM

Electric motor 1,5 kW, 230 V AC,Infinitely variable velocity anywhere from 0 to approx. 50 cm/s.Operation with generator possible.

Operation Terminal for SDW-ESM

portable with 7m connection cable to winch available as:
- standard version
- incl. LC-Display,
- incl. LC-Display & integrated counter



SEBA Drift Indicator

The Drift Indicator is used to determine the drift angle of a suspended current meter equipment. The entire instrument, consisting of monocular, plate with division marks, adjustment screw and angle scale are fixed at the winch, resp. the winch post.

Producing Area：Germany
