For measurements with cable suspended F1 current meter equipment 5 to 50 kg from bridges with different railings

Key Features :
Comfortabel multi-place measurements
Easy Handling
Quick Mounting
Special version for up to 100 kg available



Function Description

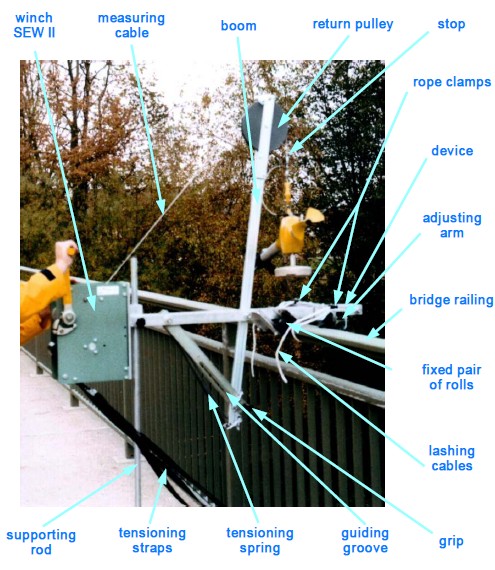

After the mounting of the mobile bridge jib and the single drum winch SEW II, the torpedo sinker weight can be fixed on the measuring cable / suspension cable.
Bigger torpedo sinker weights can be lifted directly out of the transport case on top of the bridge railing.
And there the stabilizer tail piece and cable suspended meter F1 is assembled to the torpedo sinker weight.
Now you can start with the LOWERING for the measurement.

The swivelling arm locks and the cable suspended current meter equipment is lowered on the bridge railing.
From there the cable suspended current meter equipment can be dismounted for transport.
The assembled cable suspended current meter equipment is lifted from the bridge railing until the swivelling arm unlocks.

LOWERING FOR THE MEASUREMENT

After the stopper reached the return pulley the cable suspended current meter is lifted back over the bridge railing.
The unlocked swivelling arm carries the cable suspended current meter equipment over the bridge railing.

After the measurement the cable suspended current meter equipment is lifted from the waters.
From there the cable suspended current meter equipment is lowered into the water.

LIFTING UP AFTER MEASUREMENT

To measure from other points, the bridge jib is simply sledded step by step alongside the railing to the next point of measurement.

The bridge jib is very easy to mount.

Systems for mobile discharge measurement

Additional Samples

1)Jib with SEW II mounted on a trolley

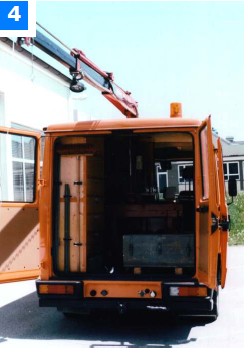

2)Trailer with telescope jib with SEW II
3)Rotatory telescope jib with motorized SEW II e.g. mounted on a pick-up
4)Car with rotatory telescope jib and SEW II





Technical Details

Dimensions for transport
(length x width x height):
130 x 54 x 30 cm

Material:
Aluminium, galvanized steel,
high-grade steel, PVC

Permissible weights:
up to 50 kg

Railing size:
from 40 up to 220 mm

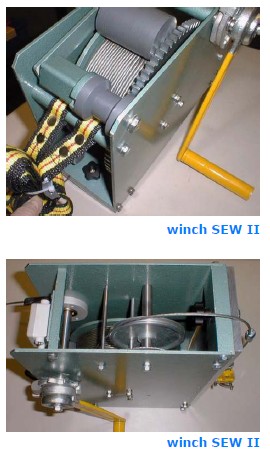

Winch: SEW II

Differences for the type "extended" compared with the type "standar":
Contrary to the type "standard" the winch is fixed in a different way for the type "extended". An additionally installed brace offers more stability. Moreover, the jib is extended, as you can already learn from the name.

Producing Area：Germany
