Versatile water quality measurement in surface water
Parameters:
Water level
Temperature
Conductivity
- Total Dissolved Solids (TDS)
- Salinity
- Density
Dissolved Oxygen
-oxygen saturation
pH-Value
Redoxpotential (ORP)
Ammonia
Nitrate
Chloride
Ammonium
Sodium
Calcium
Fluoride
Potassium
Chlorophyll a
Cyanobacteria
Rhodamine WT
Turbidity
-Total Suspended Solids (TSS)
Connecting the MPS Application in river Mobile water quality measurement

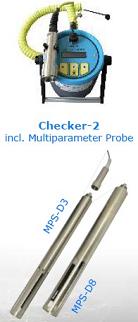

Quality Measurements with SEBA Checker-2
The SEBA Multi-parameter system has been developed as a mobile field laboratory especially for
determination of water quality parameters in surface water.
The has an extremely compact design, easy operation with fast and precise acquisition of various water
quality parameters. The current measured values are clearly displayed.
Optionally, the instrument can be equipped with an integrated data logger with a storage capacity of up to 70,000
values for an automatic or manual data recording.
Checker-2 in Detail
Display
3-lines Display with background lighting for clear indication of current measuring values.
Operation
The instrument can be operated via 3 watertight keys on the front. It is very user-friendly and menuguided.
SEBA-HDA
Your alternative to using a Notebook for programming, read-out of the stored files as well as for local visualisation of measuring data.
Data Logger
Full data logger functionality (optional) is possible for the automatic storage of up to 70,000 measured values.Instant logs can be obtained manually at the push of a button, suitable for quick assimilation of water quality profiles.
Read-out and setting of measuring frequency via RS 232-interface with SEBA-HDA or laptop.
RS 232 Interface & Charging
for operation of the data logger, adjustment and calibration of the multiparameter sensors.
Charging of the internal batteries with included charger

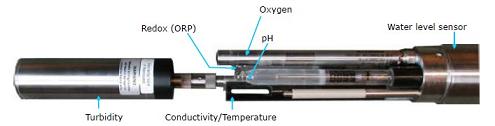

Multiparameter Sensor
Double plug-in, maintenance-friendly high-quality-steel probe (MPS-D3, MPS-D8) or single plug-in plastic probe MPS-K16 for connection to Checker-2 or KLL-Q-2.
Individually configurable with various sensors (e.g pH, O , conductivity etc.)
For a detailed description of possible configurations refer to our Water Quality Monitoring brochure.
RS 485
for connection of the MPS on the backside of the instrument
Technical Data basic module
Cable
robust, 2m long spiral cable made from polyurethan with copper core
Housing
impact-resistant, temperature stable synthetic material, (watertight) protection class: IP65
Power Supply
rechargable batteries 4x 2 V incl.external charger
operation period: up to 15 hours depending on measuring mode and connected sensor
Data logger function (optional)
Electronics:
Power consumption in power-down Mode: 140μA
Flash-Controller: M16C 16-Bit with integrated Watch-dog IC-Clock
Memory: serial Flash-Memory with 1MB (approx. 70,000 measuring values)
Channels: max. 32
Measuring interval: user-selectable > 2 minutes (automatic storage) as well as manual storage possible
Digital indication
alphanumerical 3 line LC-Display for indication of current value
Operation and Display:
- Display (3 lines, 16 characters 3.65mm)
- 3 keys
Interfaces:
- RS 232 (communication & charging)
- RS 485 (sensor-interface)
Operating Temperature:
- working temperature: -15°C to +50°C
- storage temperature: -40°C to +80°C
Dimensions:
- height 150mm, with handle 225mm; Ø 130mm;
- range of spiral cable: 0,6...2m
- weight without probe: approx. 2,5 kg

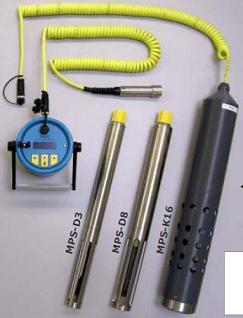

Connectable Sensors:
- multiparameter sensor MPS-D3 (V4a steel)
- multiparameter sensor MPS-D8 (V4a steel)
- multiparameter sensor MPS-K16 (plastic)
Sensor Body
non corrosive V4a steel or PVC
Technical Data Sensors
Parameter Measuring ranges Parameter Measuring ranges
water level 0...200 m nitrate 0.4...60,000mg/l
temperature: -5...50°C temperature: 0...40°C
pressure: 0...20 bar
temperature -5...50°C chloride 1...35,000mg/l
pressure: 0...50 bar temperature: 0...50°C
pressure: 0...20 bar
conductivity 0...200mS
temperature: -5...50°C
pressure: 0...50 bar ammonium 0.2...18,000mg/
temperature: 0...40°C
pressure: 0...1 bar
total dissolved solids 0...200,000mg/l
(TDS) temperature: -5...50°C
pressure: 0...50 bar natrium 0.2..20,000mg/l
temperature: 0...50°C
pressure: 0...6 bar
salinity 0...70
temperature:-5...50°C
pressure:0...50 bar calcium 0.5...40,000mg/l
temperature: 0...40°C
pressure: 0...1 bar
density 988…1,060 g/l
temperature: -5...50°C
pressure: 0...50 bar fluoride 0.2…20,000mg/l
oxygen temperatuer: 0...40°C
(amperometric) 0...40mg/l pressure: 0...1 bar
temperature: 0...50°C potassium 0.4...39,000mg/l
pressure: 0...10 bar temperature: 0...40°C
pressure: 0...1 bar
oxygen (optical) 0...25mg/l chlorophyll a (optical) 0.03…500μg/l Chl a
temperature: 0...50°C temperature: -2...50°C
pressure: 0...10 bar pressure: 0...60 bar
oxygen saturation 0..400% saturation
temperature: 0...50°C cyanobacteria (optical) 150...2,000,000 cells/ml
pressure: 0...10 bar temperature: -2...50°C
pressure: 0...60 bar
pH 0..14
temperature: 0...50°C rhodamine WT (optical) 0.04...1,000ppb RWT
pressure: 0...20 bar temperature: -2...50°C
pressure: 0...60 bar
redox (ORP) -1,200mV...1,200mV
temperature: 0...50°C turbidity (optical) 0...1,000NTU
pressure: 0...20 bar temperature: 0...50°C
pressure: 0...10 bar with wiper
0...20 bar without wiper
ammonia 0.01...17000mg/l
temperature: 0...50°C
pressure: 0...0,5 bar total suspendid solids approx. 5 fold measuring
(TSS) range turbidity mg/l
temperature: 0...50°C
pressure: 0...10 bar with wiper
0...20 bar without wiper
For further information on Multiparameter Sensors please see separate brochure on Water Quality Monitoring.
Producing Area：Germany
