Velocity and discharge measurement in waterbodies
Short Description
Measurement of flow velocity
Fast and accurate discharge determination
High range of application
Simple handling

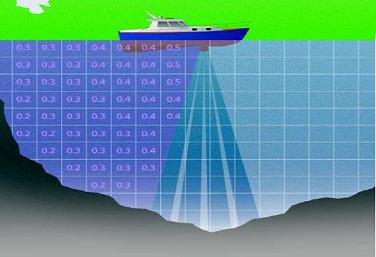

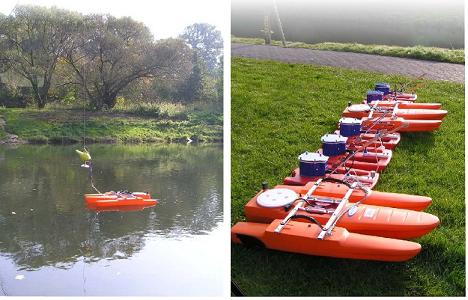

Workhorse Rio Grande on boat Measurement with Workhorse Rio Grande and Riverboat
Measurement on rubber boat Preparation of StreamPro StreamPro
RiverRay
Automatic measuring system for velocity and discharge in rivers
The RiverRay ADCP (Acoustic Doppler Current Profiler) is a state-of-the-art, comfortable discharge measurement device installed in a floating body. The flat-surface, phased array transducer integrates the latest measuring technology and provides an innovative result of the discharge measurement.
RiverRay highlights
Easy operation thanks to automatic adjustment of cells and measuring modes
Flat-surface, phased array transducer
Reduced size and weight ADCP sensor with low flow disturbance
New improved floating body
Wireless data transmission via Bluetooth
Expandable with (D)GPS
Large measuring range allows measurements in high and low water levels with one system
Windows-based data collection software for presentation of all measuring results
Technical Data
ADCP Sensor
Number of cells: automatic, 25 typical, 200 maximum
Cell size: automatic, 10 - 80cm
Min. depth: 0.4m
Max. depth: 40m
Bottom Tracking: 70m
Accuracy: ±0.2cm/s or
±0.3% of velocity
(water and boat)
Resolution: 0.1cm/s
Measurement
range: ±5m/s
Configuration: phase controlled sensor
Frequency: 600kHz
Geometry: 4 beams
Beamangle: 30°
Integrated sensors
Temperature
Measurement range: -5°C to 45°C
Accuracy: ±0.4°C
Resolution: 0.01°C
Tilt
Measurement range: ±15°
Accuracy: ±0.5°
Resolution: 0.01°
Compass
Accuracy: ±2°
Resolution: 0.01°
Max. tilt: ±15°
System components
ADCP Sensor
Data collection software WinRiver II
Float
Bluetooth interface
power
10.5 - 18VDC
Physical properties
ADCP Sensor
Weight: 4kg
Dimensions: Ø16.5cm x 17.5cm length
Float
Weight: 10kg
Dimensions: 120cm x 80 cm x 18 cm (WxLxD)
Options
Section-by-Section module
Communication via radio modem
StreamPro
Velocity and discharge measurement in shallow streams
The StreamPro ADCP (Acoustic Doppler Current Profiler) represents a revolutionary advancement in velocity and discharge measurement. Now you can accuratly measure discharge in shallow streams in a matter of just minutes.

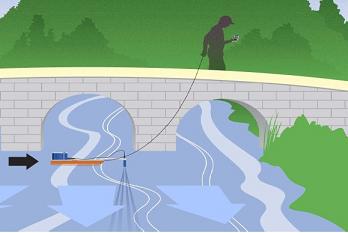

StreamPro can be tethered to be pulled from a bridge or a cable way. It is easy to handle and therefore fast applicable.The simple and highly intuitive user interface of software StreamPro has been designed to ensure proper operation.
StreamPro Highlights
Measurements in streams from 15cm depth
Small transducer head (Ø3.5cm), for minimal flow disturbance
Low power consumption (1 day of operation on 8 mono cells 1.5V)
Minimum cell size 2cm
Communication via Bluetooth
Intuitive user interface of software StreamPro
Analysis and postprocessing of data with software WinRiver II
Technical Data
System Components
small transducer head
electronics case
float
data collection software StreamPro
bluetooth wireless
SEBA-HDA
Power
10 to 13.5V (8 x 1.5V mono cells or rechargeable NiMH batteries) for 8 - 12 hour operation
Physical Properties
Weight: 5kg incl. elektronic,sensor, boat and batteries
Dimensions:
electronic housing: 15cm x20cm x 10cm
sensor: Ø 3.5cm x 15cmlength
boat: 44cm x 70cm x 11cm(WxLxD)
Options
Max. measuring depth extended to 4m
Section-by-Section modul
Stable Riverboat SP
Cable Chimp for cable way
ADCP Sensors
Number of cells: 20
Cell size: 2-20cm
Min. depth: 0.15m
Max. depth: 2m (4m see options)
Accuracy: ±1.0% ±0.2cm/s
Resolution: 0.1cm/s
Measurement range:±2m/s (±5m/s with Riverboat SP)
Frequency: 2.0 MHz
Geometry: 4 beams
Angle of beam: 20°
Beam width: 3°
Material: Polyurethane
Integrated Sensor
measurement range: -4°C bis 40°C
accuracy: ±0.5°C
resolution: 0.01°C
Workhorse Rio Grande
Versatile velocity and discharge measurement system for rivers
The Workhorse Rio Grande ADCP (Acoustic Doppler Current Profiler) is an accurate and comfortable discharge measurement system. It can be mounted on a boat or used with a float (Riverboat, Q-Boat). The results are fast and accurate discharge measurements.
The Workhorse Rio Grande measurement system can be used for a wide range of river conditions, from shallow (50cm) streams to rushing rivers as well as tidal estuaries.
Workhorse Rio Grande Highlights
High discretisation of cells and fast transects for velocity and discharge measurement due to patented BroadBand technology of Teledyne RD Instruments
Extendable with external sensors:(D)GPS, depth sounder, and external compass
Large depth range profiling capability allows measurements in low and high flow
Windows-based data acquisitions with display of all results
Technical data
ADCP Sensors
Number of cells*: 128/255
1200kHz system
Cell size*: 0.05-2,0m
Min. depth*: 0.5-4.8m
Max. depth*: 4-26m
600kHz system
Cell size*: 0.1-4.0m
Min. depth*: 0.7-9.2m
Max. depth*: 8-100m
Accuracy: ±0.25% of velocity (water and boat) or ±0.25cm/s
Resolution: 0.1cm/s
Measurement range: ±5m/s
Geometry: 4 beams
Angle of beam: 20°
*depends on measurement mode
Integrated Sensors
Temperature
Measurement range: -5°C to 45°C
Accuracy: ±0.4°C
Resolution: 0.01°C
Tilt
Measurement range: ±15°
Accuracy: ±0.5°
Resolution: 0.01°
Compass
Accuracy: ±2°
Resolution: 0.01°
Max. tilt: ±15°
System components
ADCP sensor
data collection software WinRiver II
float (optional)
Power
10.5 - 18V DC
Physical Properties
ADCP Sensor
Weight: 7kg
Dimensions: Ø 22.8cm x 20.14cm length
Riverboat
Weight: 7kg
Dimensions: 121cm x 81 cm (LxW)
Options
Bottom Mode 7: bottom tracking for shallow streams from 50cm depth
Water Mode 12: for flow , velocities >2m/s
Section-by-Section module
communication via radio modem
remote controlled Q-Boat
mounting fixture for rubber or motor boat
Comparison of mobile ADCP systems
RiverRay, StreamPro and Rio Grande
RiverRay StreamPro Rio Grande
Number of cells 200 20 (30 ) 128 / 255
Cell size automatic, 2 - 10cm (2 - 20cm ) 0.05 - 2,0m2 / 0.1 - 4.0m2
10 - 80cm
Min. depth 0.4m 0.2m 0.6 - 4.8m2 /0.7 - 9.2m2
Max. depth 40m 2m (6m1 ) 4 - 26m2/8 - 100m2
Bottom Tracking 70m 4m (7m1) 30m /100m
Accuracy ±0.2cm/s or ±0.3% ±0.2cm/s or ±1.0% ±0.25cm/s or ±0.25%
Resolution 0.1cm/s 0.1cm/s 0.1cm/s
Measurement range ±5m/s ±2m/s ±5m/s
(±3m/s with RiverboatSP)
Configuration Phased Array
Frequency 600kHz 2000kHz 1200kHz/600kHz
Geometry 4 beams 4 beams 4 beams
Angel of beams 30° 20° 20°
Communication Cable, Bluetooth, Bluetooth Cable, optional radio modem
optional radio
Software WinRiver II StreamPro, WinRiver II WinRiver II
Float inclusive, inclusive, Riverboat, Q-Boat 1800,
optional Q-Boat 1800 optional RiverboatSP mounting fixture for rubber
or motor boat
Expansions Section-by-Section Section-by-Section Section-by-Section
measuring range, Water Mode 12
compass-upgrade Bottom Mode 7
Options (D)GPS (D)GPS, depths sounder,
external compass
1with extension of measuring range
2depending on measurement mode
(D)GPS - Differential Global Positioning System
Recording of cross-section coordinates in rivers

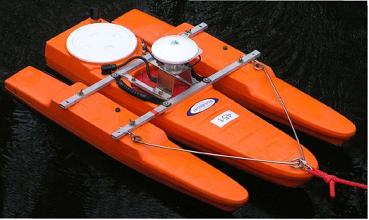

The (D)GPS upgrade is possible for Rio Grande with Riverboat, for RiverRay and Q-Boat 1800. In case of a moving bed it is recommendable to use (D)GPS instead of the Section-by-Section module. Furthermore the (D)GPS equipment is mandatory for recording of crosssection coordinates, e.g. for hydraulic modelling. The accuracy is highly depending on the quality of satellite reception and the correction signal.
Technical data
Minimum reception of 4 satellite signals for determination of position
Output format NMEA
Data transfer to software WinRiver II
Accuracy
GPS meter-accuracy With correction data (DGPS) submeter-accuracy
RTK (Real Time Kinematic) mode centimeter-accuracy
Differential correction data
Second GPS system at shore as reference station
Geostationary satellites (EGNOS,WAAS, OMNISTAR)
Beacon-stations
Possible costs for correction signal
Power
10.5 - 28 VDC
Physical properties
Receiver
Weight: 1.3kg
Dimensions: 24cm x 12cm x 5cm (WxLxD)

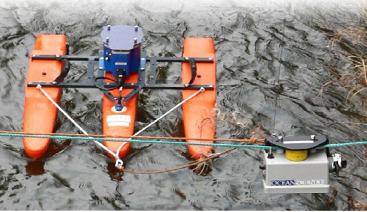

Cable Chimp
Remote-controlled system for crossing rivers
The cable chimp allows a slow and constant crossing of the ADCP systems and therefore ensures an accurate collection of velocity and discharge data. The system is remote-controlled from the river bank. The cable trolley can be used with the three ADCP systems RiverRay, Rio Grande and StreamPro. A discharge measurement at sites with bad access is thus easier. The cable chimp can also be used with existing cable way installations.
Technical data
For Rio Grande and RiverRay at flow velocities up to 1m/s
For StreamPro at flow velocities up to 3m/s
Diameter of cable from 6 to 12.7mm
Speed of drive 0.03 – 0.2m/s
Range of remote control 30m
Light and water-tight aluminium enclosure
Max. grade 8°
Power supply
NiMH rechargeable batteries
Operation time:
- >2h at max. speed
- >3h at half speed
Physical properties
Weight: 2.2kg
Dimensions: 24.1cm x 35.6cm x11.4cm (WxLxD)
Options
Water-tight transport case
Towing device for use at low flow velocities

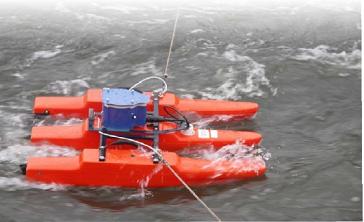

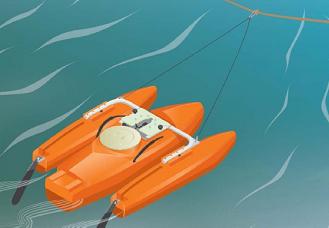

RiverboatSP
Large float for small StreamPro sensor
Technical data
Operation at flow velocities up to 3m/s
Floating body made of polyethylene
Cross bar made of anodized aluminium
Large fins for high stability
Physical properties
Dimensions: 114cm x 81cm (WxL)
Options
Padded nylon bag for transport
RiverboatSP is used with the StreamPro sensor. In addition to the standard floating body, the large float RiverboatSP is the ideal extension for determination of velocity and discharge measurements with StreamPro at high flow velocities. The conversion of StreamPro sensor and its electronic enclosure from the standard floating body to the RiverboatSP is performed easily with a few actions.

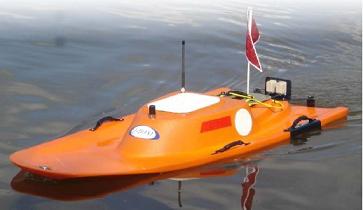

Q-Boat 1800
Remote-controlled velocity and discharge measurement
Technical data
For operation with Rio Grande or RiverRay
Two high-performance outboard engines
Driving speed max. 5m/s
Range of remote control 300m
Robust, insubmersible, plane,V-shaped hull
UV-resistant synthetic material
Communication via radio modem
Power supply
NiMH rechargeable batteries
Operation time:
- 40 minutes at 4m/s
- 240 minutes at 1m/s
Physical properties
Weight: 25kg
Weight during operation: 40kg
Dimensions: 180cm x 89cm(WxL)
Options
(D)GPS upgrade extendable with external depth sounder
Camera upgrade
Q-Boat 1800 is a remote-controlled float for Rio Grande or RiverRay. Now, velocity and discharge measurements are even possible at impassable measuring sites. The Q-Boat 1800 allows a safe and uncrewed measurement in case of floods. The two outboard engines and the V-shaped hull ensure an easy control even in turbulent waters.
WinRiver II Software
Registration and analysis of discharge measurements

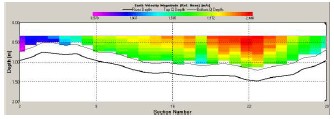

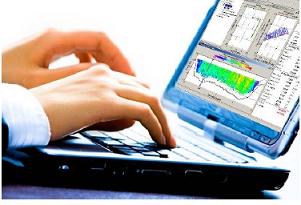

The software WinRiver II is used to record and analyse velocity and discharge measurements of mobile ADCP systems.
The configuration of the measurement system can be done by running the "Measurement Wizard". Site-specific settings and different modes can be chosen to adapt the measurement device to different river conditions.
After finishing the measurement, the playback menu offers the possibility to correct the measurement settings and to reanalyse the measurement. For the analysis itself, several tables and graphics are available.
The software WinRiver II can also used for the operation with StreamPro in combination with a long-range SEBA bluetooth module.

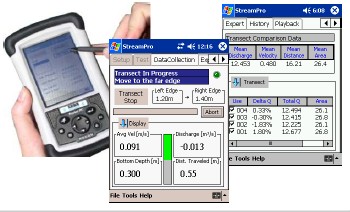

StreamPro Software
Registration and analysis of discharge measurements with StreamPro
In combination with the SEBA bluetooth module,Software StreamPro can be used to record and compare measurements with StreamPro on your HDA (Hydrological Digital Assistent).
With the SEBA HDA as an easy-to-handle, lightweight and waterproof device, your mobile discharge measurement is sure to be an innovative experience. Our self-explanatory software StreamPro alleviates the measurement with your StreamPro. Tabulation allows a comparison and analysis of discharge measurements directly at site.
After finishing a measurement with software StreamPro, your data can be imported in WinRiver II easily and comfortably. Afterwards, the measurement can be managed and processed professionally as usual.
Section-by-Section Software
Registration and analysis of discharge measurements in verticals
The software Section-by-Section is used to record and analyse discharge measurements of mobile ADCP systems in verticals.
With Section-by-Section software, water velocity and depth data is actually acquired at a series of fixed locations across the measured body of water.With Section-by-Section, the specific verticals were analysed and the total discharge is determined. Because Section-by-Section is similar to conventional measurement methods, it’s extremely easy to learn.
