GSM/GPRS transmission Suitable for 1 / 0.5" observation wells
Key Features:
Automatic call of measuring stations
GSM/GPRS data transmission
SMS-Alarm
Suitable for 1 / 0.5" observation wells
Battery operation
Reduction of expenses due to longer control intervals
Option: Bluetooth-Interface
Also available as a retrofit kit for existing Dipper-3 data loggers
Groundwater meas. site Application
Readout with SEBA-HDA Evaluation with our
internet hosted portal

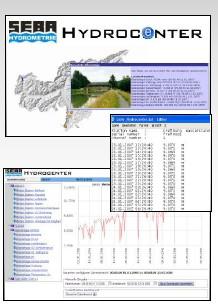

SEBA-Hydrocenter
System Description

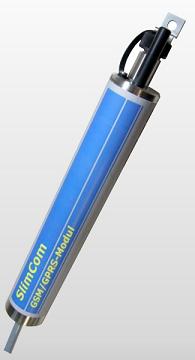

The GSM/GPRS transmission system SlimCom is a miniature data transmission system for an economic control of groundwater monitoring stations. The following features are characterisitc for the SlimCom Sytem:
1. Compact Construction
Our SlimCom module with integrated GSM/GPRS modem and antenna is suitable for installation in observation wells starting from 1 /0.5 ” diameter.
For observation wells 2” or bigger, control measurements with electric contact meters (KLL) are possible without removing the system from the casing.
2. Energy Management
Standardly, the system comes with three 1,5V Alkali manganese batteries. A sophisticated energy management (time slot procedure) provides high battery lifetime and therefore a minimum amount of maintenance. A battery change is blindingly easy...!
For shorter download intervals, the SlimCom system can be equipped with two 3,6 V lithium batteries. With a weekly download interval the lifetime of the sytems is more than 10 years.
3. Automatic call of the measuring sites and SMS alarm
The System can be called comfortably in individually programmable time slots via the software DEMASole. Independently, alarm limits can be defined (e.g. water level, battery capacity). SMS alarms can be sent to up to 8 different mobile phone numbers, as well as by email and to a facsimile instrument.
Data logger directly pluggable to SlimCom
Water Level: Water level-/temperature:
with Dipper-3 with Dipper-T3
1 MB Flash-memory as Dipper-3
for up to 480.000 values incl. temperature sensor
measuring ranges: measuring range:
2,10,20,40,100,200 m -5...+50°C
accuracy:
±0,05 % = 1cm
at 20 m measuring range
dimensions: 22 mm Ø, 270 mm length dimensions: 22 mm Ø, 270 mm length
Operation with SEBA-HDA or Notebook
The adjustment and programming of the SlimCom System can be done with a notebook, an interface cable and our userfriendly configuration software WBedien/SEBA Config. Alternatively to the notebook, we recommend our trailworthy, handy SEBA HDA (Hydrological Digital Assistent).
SEBA-HDA a tough and robust hand-held
Robust PDA for tough field operations and an alternative to the notebook. Vibration, impact, dust and water resistant magnesium housing according to IP 67 for the operation between -30°C and +60°C. Operation time of up to 30 hours on one charge.
Simple operation resp. input of parameters (e.g of control values) via TFT colour LC-touchscreen or stylus
Included in the delivery:
-Operation software SEBA-WBedienCE for simple ,
programming, adjustment and operation of the
entire SlimCom and Dipper-3 System as well as for
transmission of the stored values to your PC.
-Evaluation software MGMDS/MLMDS CE for
plausibility check of stored measuring data in form
of graphs and data sheets.
Automatic monitoring data retrieval with DEMASole or with Hydrocenter via Internet
Storage of data (SQL-database) with DEMASdb

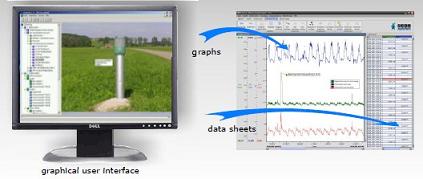

and Visualisation of measuring values (graphs/lists) with DEMASvis
In order to conduct an automatic monitoring data retrieval from the SlimCom , the comfortable DEMASOle software is implemented and the data can automatically be stored in DEMASdb. Alternatively the standardized call protocol DDP (descriptive data procotol) also allows the retrieval of recorded data with nonproprietary software, i.e. WISKI/SODA (Kisters), MAWIN etc.
DEMASdb offers a comfortable graphical user interface, an automatic data retrieval software (DEMASole) as well as an evaluation module (MGMDS/MLMDS) which includes various calculation functions. Depending on the size of the network, DEMASdb is provided with a paradox-, MySQL-, Oracle- or MS SQL-database. Optional DEMABdb can also be integrated with an already existing SQL database (e.g Oracle, SQL-Server). DEMASdb enables a simple data management of monitoring networks of various extents: small (10 sensors), middle (50 sensors) and large (> 100 sensors）.
Client/Server operation, network capability, user administration
DEMASole: data retrieval of monitoring stations via GSM/satellite/landline
DEMASvis: evaluation of measuring data (multi-graphs,multi data sheet)
DEMASdb: storage of monitoring data (SQL-database connection)
Alarm in case of exceeding of predefined thresholds (e.g. FAX, SMS)
Export of monitoring data to other software (automatically)
Technical Data SlimCom
for GSM/GPRS -Networks 850/900MHz/1800/1900MHz
Housing: Alu, IP67
Dimensions:
Standard: Ø35 mm, height 350 mm
height incl. antenna 390 mm
Modem: GSM standard, 850/900MHz/1800/1900MHz
(GSM, Quadband), GPRS
Operation: with 1,8/3V- SIM-card
Antenna: integrated, robust and weatherproof
Interface/s RS 232
Option: Bluetooth
SMS-Alarm: 8 x SMS-Alarm to a mobile phone
SMS-Alarm to facsimile instrument
Time Slots: freely adjustable
Power Supply:
standard: adaptable battery compartment with
3x1,5V Alkaline-Mangan batteries
operation time: > 2 years @ 1 call/day
optional: 2x3,6V lithium batteries
operation time: > 10 years @ 1 call/week (depending on the quality of the GSM connection)
SEBA Data Logger
Dipper-3
for water level measurements
· 16 Bit microprocessor
· 1 MB Flash-archive memory for approx. 480.000 values
· Watch-Dog for control of the microprocessor activities
· Serial communication interface RS 485
· Optional connection via Bluetooth-Interface
· Realtime Clock
· Analog input (water level and temperature)
· Power supply with exchangeable lithium battery, sufficient for approx. 10 years (with 60 minutes interval)
· Supply- and adaption unit with integrated desiccator and pressure compensation tube
· Housing: water pressure-tight housing of anti-corrosive steel
· Dimensions: 22 mm Ø, 270 mm length
· Operation temperature: -20...+70°C
Pressure Sensor for water level measurement
robust pressure sensor with excellent long-term stability:
Accuracy:
0,05 % = 1 cm at 20 m measuring range
Long-term stability: ±0,1 % / year
Temperature stability: ±0,01 % / K
Measuring ranges: 2 / 10 / 20 / 40 / 100 / 200 m
resp. upon request
Dipper-T3:
for water level and temperature registration
technical data as Dipper-3,
but additionally with temperature registration:
Temperature sensor (NTC30 sensor element polynomic linearised)
Measuring range: -5...+50°C ± 0,1°C
System length: up to max. 1000 m
Special cable: screened round cable with
integrated pressure
compensation tube
For further information on the above mentioned data loggers, please refer to their brochures.
SEBA operation terminal - HDA
Size: 16,5 x 9,5 x 4,5 cm (6,5 x 3,75 x 1,75")
Weight: 490 g incl. battery
Protection class: IP 67
Operation temperature: -30°C to +60°C
Humidity resistance: MIL-STD 810F method 507.4
Processor/Memory: Intel PXA 255 X-Scale CPU
RECON200 - 200 MHz,
64 MB SDRAM, 64 MB NAND Flash
Display: 1/4 VGA, 240 x 320 Pixel, color TFT, LED-light
TFT with touchscreen and display illumination
Battery: 3.800 mAh rechargeable pack
Operation system: Windows Mobile
Interface: 1 x USB-B Slave (12 Mbps),
1 x RS232 (115 Kbps)
1 x charging, 2 x CF-slots type II
Keypad: 10 function keys, softkeyboard for entering of
alphanumerical characters
included upon delivery:
- battery charger
- connection cable HDA-PC
- Software SEBAConfig CE
- Software MGMDS/MLMDS CE
for presentation of data in form of
graphs and data sheets
Producing Area：Germany
