Monitoring of rivers, lakes and flood control basins
Brief Description
Fast and reliable alarm systems via SMS
Automatc data retrieval
Data transmission via GSM/GPRS
Suitable for operation in well casings starting from 2”
Battery/Solar panel operation
Lowcost installation & Easy Handling
Option: with Bluetooth-interface
Flood forecasting Data Retrieval with SEBA-HDA
Construction site monitoring Flood Control Basin
System Description
The SEBA flood control system is a sophisticated, compact remote transmission system for an economic control of groundwater monitoring stations. Following characteristics distinguish the SEBA top piece:
The compact and robust construction enables easy mounting of the level observer in open areas on a 4”casing with winding. Depending on the location, the sensor (e.g. pressure sensor) can be installed in an existing 4” well together with the SEBA Top Piece (e.g. on a sheet pile, bridge groundwork) or as as separate solution by means of an additional protection tube (1”) which is installed in the water. This keeps the costs for setting up an alarm station rather low!
A sophisticated energy management (time-slot procedure) allows a long battery life time which leads to low maintenance costs. With an optional additional solar cap any battery changes can be avoided.
The SEBA Top Piece can individually be equipped with various sensors according to the user’s needs:
Function principle:
Whenever a threshold value of up to 4 freely programmable parameters (e.g. water level, battery capacity etc) is transgressed, an SMS alarm is sent to upt to 8 different mobile phone numbers.
Additionally to the alarm function, the measured data can be transmitted to a PC via GSM/GPRS. The data are moreover stored inside the integrated data logger. The measuring intervals can be configured freely.
With a notebook or your SEBA HDA and an interface cable, the recorded values can comfortably be downloaded via the RS 485 interface or wireless via Bluetooth (option).
Measuring sensors directly connectable to LogCom/FlashCom
We offer a variety of sensors for the above mentioned configuration possibilities, depending on your measuring task and local conditions:
Water level: Water level-/temperature: Water Quality:

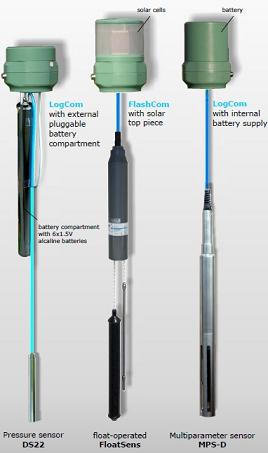

float-operated sensor FloatSens combined sensor with Waterquality Sensor MPS-D
pressure sensor DS 22 special cable and pressure for measurement of:
robust, high precise compensation tube Water level
differential pressure sensors For measuring water level and Water temperature
with extreme long-term water temperature with Conductivity
stability; extreme long-term stability Salinity
stainless steel encapsulation; pH-value
special cable with pressure ORP (Redox potential)
compensation tube Dissolved oxygen
Turbidity
etc.
Operation with SEBA-HDA or Notebook
Adjustment and programming of the intelligent SEBA Top Piece can be done with a notebook, an interface cable and our userfriendly configuration software. Alternatively to the notebook, we recommend our rugged and handy SEBA HDA (Hydrological Digital Assistent):
SEBA-HDA "tough and robust companion"
Robust PDA for tough field operations and an alternative to the notebook. Vibration, impact, dust and water resistant magnesium housing according to IP 67 for the operation between -30°C and +60°C. Operation time up to 30 hours on one charge.
Easy operation resp. input of parameters (e.g. of control values) via TFT colour LC-touchscreen or stylus.
Included in the delivery:
-Operation software SEBA-WBedienCE for simple programming, adjustment and operation of SEBA water level observer, as well as for transmission of the stored values to PC.
-Evaluation software MGMDS/MLMDS CE for plausibility check of stored measuring data in form of graphs and data sheets.
Automatic Data Retrieval via SEBA-Hydrocenter

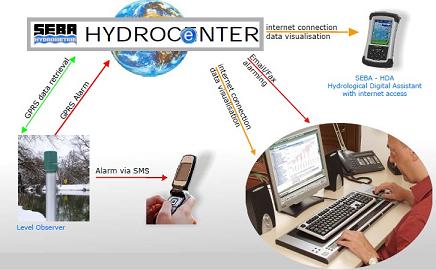

If you would like to retrieve your data more comfortably and remotely, you can visualise the measuring data in form of graphs and data sheets on our internet platform SEBA-Hydrocenter - either routinely (e.g. once a day) or in case of an alarm (transgression of preset threshold values). Those data can then be downloaded for further use. In order to assure a high battery-durability, the data are only called at preset times.
In case of an emergency (e.g. flooding), the data can be downloaded at much shorter intervals (e.g. once per hour) and transmitted instantly to the SEBA-Hydrocenter (timeslot procedure)
Technical Data SEBA Top Piece (LogCom/FlashCom)
for GSM/GPRS 900/1800MHz- networks
Housing: Aluminium, watertight IP67
dimensions:
LogCom: Ø168mm, height 133mm
FlashCom : Ø168mm, height 220mm
Data logger: integrated with MDS or DDP protocol
Memory: 512K for 240,000 values
option: 1MB for 480,000 values
option: 2MB for 960,000 values
Modem: GSM standard 850/900/1800/1900MHz
(EGSM, Quadband), GPRS
Operation: with 3V- SIM-cards
Antenna: integrated in the top of the protection housing
robust, impact resistant and weatherproof
Interfaces: RS232
option: Bluetooth
Display: 1 x 8 digits LC-display for
indication actual measuring value
clock, date, status
SMS-Alarm: 8 x SMS-alarm to mobile phone
SMS-alarm to FAX
Time slots: free programmable
Power supply
LogCom: 6x1.5V Alkaline batteries
(Mono, LR1, Am1, size D)
Operation time: >2 years in case of 1 query/day
(depending on the quality of the GSM
connection and measuring interval)
FlashCom: solar operation
Operation time: sufficient for 1 query/day
(other query intervals on request)
SEBA Sensors
Pressure sensor DS22 for water level registration
· high accurate, robust and long-term stable
pressure transducer with stainless steel housing
· accuracy: <±0.1% = < 1cm WS
at 10 m measuring range
· long-term stability: <0.1% /year
· measuring ranges: 2.5; 5.0; 10.0 m water level etc.
· special cable for pressure transducer (food safe)
with integrated pressure compensation tube (length up
to 300m)
Combined sensor DS/T-22:
for water level and water temperature registration
Float-operated Floatsens:
to measure the water level
· SMD-technique with automatic test routines
· 16 Bit microprocessor
· Watch-Dog to observe the
microprocessor activities
· Serial communication interface RS 485
· Real-time clock
· Encoder
· Power supply with changeable Lithium
battery sufficient for >5 years
(with 60 min. interval)
· Operation temperature range: -20...+70°C
· Watertight PVC housing
· Dimensions: Ø 40mm, length 280mm
· Installation device for top pieces of min. 2"
Multiparameter Sensor MPS-D
for measuring water quality
· Water level: 0..10m, 0..20m, 0..50m etc.
· Water temperature: 0..25°C, 0..50°C
· Conductivity: 0..2mS, 0..10mS, 0..100mS etc.
· pH/Redox(ORP): 0..15pH / ±2000mV
· Dissolved oxygen: 0..40mg/l; 0..400%
· Turbidity: 0..1000NTU
· special cable (food safe!) with integrated pressure compensation tube (length up to 300m)
Further technical data please see leaflet Water Quality Monitoring
Operation Terminal HDA
Dimensions: 165 x 95 x 45 mm (LxWxH)
Weigth: 490 g including battery
Protection class: IP 67
Drop: 26 falls from 1.2m on concrete
Operating temperature: -30°C until +60°C
Humidity resistance:MIL-STD 810F method 507.4
Processor/memory: Intel PXA 255 X-Scale CPU
RECON200 - 200 MHz,
64 MB SDRAM, 64 MB NAND Flash
Display: QVGA, 240 x 320 Pixel, colour TFT
display with touchscreen and front light
Battery: 3,800mAh NiMH-Batterie
for 12 – 30 hours operating
depending on operation mode
Operating system: Windows Mobile 6.0
Connections: 1 x USB-B Slave (12 Mbps),
1 x RS232 (115 Kbps)
1 x charging, 2 x CF-slots type II
Keyboard: 10 keys, on screen query softkeyboard
for input of alphanumeric signs
included in delivery:
· battery-charger
· connection cable PDA-PC
· software SEBAConfig CE
· software MGMDS/MLMDS CE
for presentation of data sheet and graphs
Producing Area：Germany
