Stationary Discharge Measurement with H-ADCP in Rivers and Open Channels
Key Features
measurement of flow velocity, stage and discharge data with high accuracy
fully configurable PC-based data logger for data registration and data processing
continuous display and control of flow velocity and discharge
SQL database for recording and management of discharge, stage, pitch and roll, echo intensities and velocities of each cell
ChannelMaster built in
installation site
H-ADCP application
Discharge Measurement with ChannelMaster H-ADCP
In the last several years, H-ADCP's have become common in a variety of applications such as discharge measurements in rivers and streams or open channels.
The compact, flexible, and affordable ChannelMaster is a horizontally-oriented Acoustic Doppler Current Profiler (H-ADCP) designed to collect high-accuracy water velocity, stage, and discharge data for a wide array of applications.
By leveraging a patented BroadBand technology, the ChannelMaster allows you to obtain unmatched data quality, even in low velocities and complex flows, where a single cell cannot provide enough information. The ChannelMaster's innovative design includes everything you need to collect high-quality data, without costly options. The standard unit comes equipped with sensors for temperature, water level and pitch and roll -as well as mounting fixture.
ADCP sensors: 300kHz, 600 kHz or 1200 kHz
ChannelMaster Highlights:
- BroadBand technology, which allows small cells and/or short averaging/sampling intervals, resulting in highly accurate velocity data
- Ability to measure highly accurate velocities even in difficult environments such as slow flow or rapidly changing flow
- A range of 1–128 user-selectable cells, with cell sizes from 25cm to 8m
- Profiling ranges from 1m to 300m (depending on system frequency)
- Standard stainless steel mounting fixture
Applications
Rivers, streams, and waterways:
Obtain high-accuracy data for monitoring velocity, stage, and discharge data.
Estuaries:
Measure complex currents for environmental monitoring or circulation model calibrations.
Ports and Harbors:
Monitor currents to provide accurate information for vessel maneuvering and safety
with protection against swimming items (algae, wood etc.)
In the last several years, H-ADCP's have become common in a variety of applications such as discharge
measurements in rivers and streams or open channels.
The compact, flexible, and affordable ChannelMaster is a horizontally-oriented Acoustic Doppler
Current Profiler (H-ADCP) designed to collect high-accuracy water velocity, stage, and discharge data
for a wide array of applications.
Data Registration an Data Processing with Q-Eye H-ADCP
The Q-Eye H-ADCP is a flexible, compact and fully configurable PC-system. It is used to display real time data of ChannelMaster H-ADCP (CM300, CM600, CM1200) and of Workhorse H-ADCP (long range) as well as to calculate flow and to store data. The device includes interfacing for remote data transmission (analogue/ISDN, GSM/GPRS). The Q-Eye H-ADCP is the ideal system for discharge monitoring in rivers and streams or artificial channels using H-ADCP technology.
Sensor Connections (ECM)
Up to 4 ChannelMasters are connectable (synchronized)
Communication RS485 / Protocol Pd0
External Water Level
Hybrid Systems
Travel Time and H-ADCP in one unit
Travel Time for shallow water (down to 20 cm)
ChannelMaster for High Water Level
Systems learn from each other
Software FlowVision
FlowVision sets new standards for ultrasonic measurement systems. The user-friendly, windows-based and multi-language software (English, French, Spanish, Italian, German) provides numerous functions. Main tasks are to control and to parameterize the measurement system as well as to process and to store data. The sample rate for data logging can vary from once a minute to once an hour in desired units of measure. All parameters (cross section, cell size, number of cells, blanking etc.) are easily configurable to your specific application. The calibration (numerical calibration, ISO 6416) and integration algorithms give superior flow calculation. The benefits are reduced start-up time configuring of the ChannelMaster, comprehensive instrument health diagnostics and reduced field technician costs with remote communications.
Values for:
Discharge , Water Level , Pitch and Roll , Temperature , Echo Intensities , Velocities in each Cell
Technical Data Q-Eye H-ADCP (ECM)
Display: 4 lines, 20 characters, backlit
Memory: Hard Disk 30 GB
Operating System: Windows XP
Languages: English, French, Spanish etc.
Number of ChannelMasters: up to 4 sensors
Analogue inputs: up to 8 (4 to 20 mA)
Analogue outputs: up to 4 (4 to 20 mA)
Digital outputs: RS 232, RS 485, USB, Ethernet
Operating Temperature: 0° to 60°C
Power Supply: 12V DC
Consumption: < 40 Watt (continuous measuring mode)

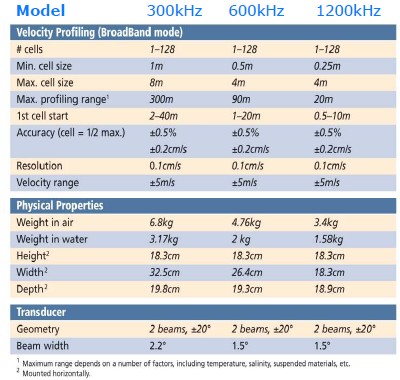

Technical Data ChannelMaster H-ADCP
Integrated Sensors
Water level(ultrasonic)
Range: 0.1–10m, Accuracy: ±0.25%, Resolution: 0.01cm
Water level (pressure)
Range: 0.1–10m, Accuracy: ±0.5%, Resolution: 0.1cm
Operation temperature
Range: -4° to 40°C, Accuracy: ±0.2°C, Resolution 0.01°
Tilt (2 axes):
Range: ±10°, Accuracy: ±0.2° at 0°, ±0.5° at 10°, Resolution: 0.01°
Communications
RS-232 with SDI-12, or RS-422
Serial baud rates: 300–115,200 bps
Construction
Cast polyurethane with titanium hardware, mounting plate included.
Power
Voltage: 10-18VDC
Max. current: 1.5A
Note: Energy consumption depends on velocity profiling parameters.
