Measuring parameters

water level
temperature
conductivity
  total dissolved solids (TDS)
  salinity
  density
dissolved oxygen
  oxygen saturation
pH value
redoxpotential (ORP)
ammonia
nitrate
chloride
ammonium
sodium
calcium
fluoride
potassium
chlorophyll a
cyanobacteria
rhodamine WT
turbidity
  total suspended solids (TSS)



Electric contact meter         FlashCom/LogCom
type KLL-Q-2                      intelligent data transmission




Springs                    Multi-channel data         MPS-Checker
                                logger MDS-5

Multiparameter sensors MPS

MPS -D3 / -D8 / -K16 and MPS-Qualilog -8 / -16

The SEBA multiparameter sensors MPS represent yet another advancement in the development of the SEBA multiparameter product line.
Equipped for measuring up to 16 different water quality parameters, the instrument provides the highest level of information  about  the  conditions  of  the  monitoring site. Specifically designed for field applications, the MPS sensors can be used under harsh conditions, e.g. in tropical, arid orarctic zones. They are robust enough for all kinds of fieldwork and measure with maximum accuracy. As it is possible to use optical sensors, a long term stability with low maintenance effort is guaranteed.
The calibration process is supported by the user-friendly calibration software SEBAConfig. The availability of high data  quality is the base for proper evaluation of the hydrological  environment.
To display the measured values, the MPS sensors can be combined with the SEBA electric contact meter (mainly for  ground water) or with the SEBA MPS-Checker (mainly for surface water).
Monitoring sites which have to be supervised continuously can be equipped with the MPS sensors in combination with a SEBA multichannel data logger (e.g. MDS-5) or with an integrated  data logger.

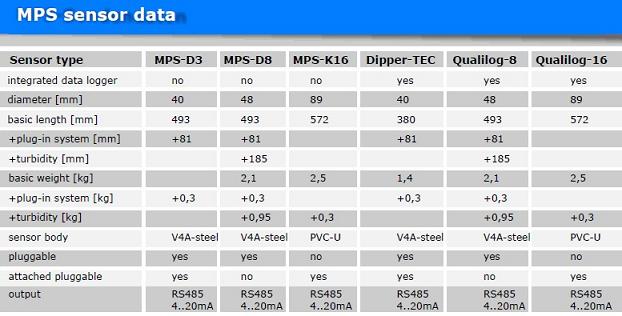

MPS-Types

MPS-D3: Digital multiparameter sensor with RS485 output and with up to 3 resp. 4 electrodes in a stainless steel body.
Dipper-TEC:Multiparameter sensor with data logger and electrodes for water level, temperature and conductivity.

MPS-D8: Digital multiparameter sensor with RS485 output and with up to 8 electrodes in a stainless steel body.
Qualilog-8:As MPS-D8 but additionally with data logger.

MPS-K16: Digital multiparameter sensor with RS485 output and with up to 12 electrodes in a synthetic body.
Qualilog-16:As MPS-K16 but additionally with a data logger.

Key advantages

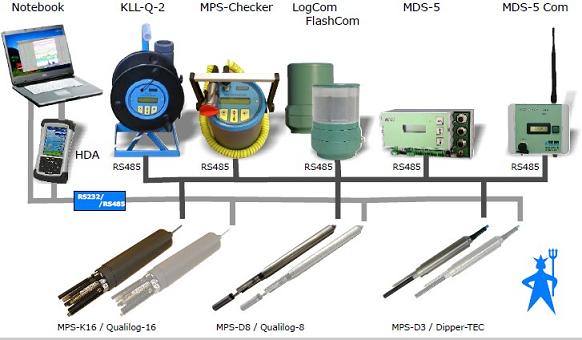

High flexibility: Pluggable to different end units (picture on the right) for mobile and/or stationary applications

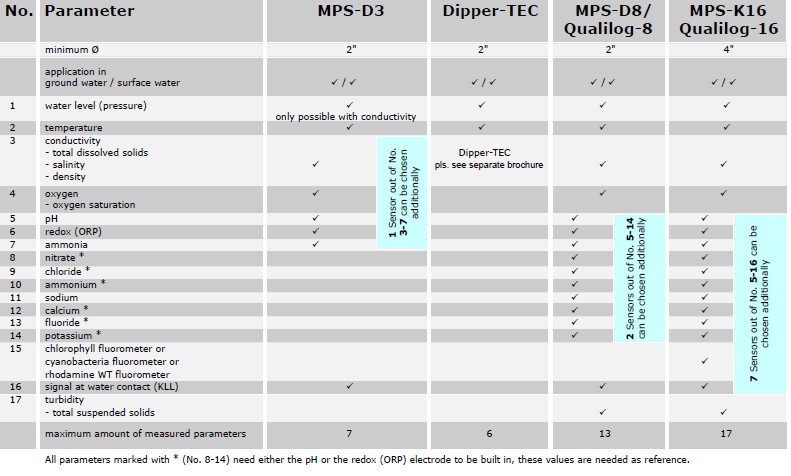

Intelligent construction kit system: further parameters within one type range can be added at any time

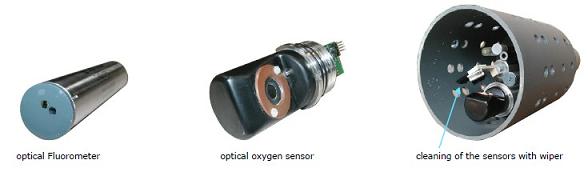

New optical sensor technology: Possible measurement of dissolved oxygen, cyanobacteria, chlorophyll a and rhodamine WT
Quick and uncomplicated exchange of exhausted electrodes
Compact design: useable in pipes with min. 2" and 4" (MPS-K) diameters

Producing Area：Germany
