Monitoring System for:
Groundwater observation wells, geohydraulic (aquifer) tests, water drainage control at construction sites and surface water
Robust housing made of anti-corrosive steel lHigh data security due to flash-memory lWatch-Dog-Function for high operation security
Nearly Maintenance Free: battery lifetime approx. 8 years,
Suitable for 2" casing and above
4" Monitoring Well Observation of Wells
Data Retrieval via SEBA-HDA Data Evaluation with SEBA-Software
Description
The new SEBA Data Logger type MDS Dipper- TEC is the consistant further development of the well proven MDS Dipper Series for the continuous monitoring of ground- and surface water, with special focus to operation and data security.
An integrated watch-dog-function in the MDS-Dipper-TEC continuously supervises the microprocessor activities and therefore can guarantee a high operation security.
The MDS Dipper-TEC is equipped with a Flash- memory (Flash-RAM). The recorded monitoring data is stored in the memory of the Dipper-TEC where the data is always recallable even in the unlikely event of a power supply failure.
Additional important characteristics of the MDS Dipper-TEC:
robust housing of anti-corrosive steel with high chemical resistance for the installation in well casings starting from 2" in diameter
exchangeable lithium batteries for >8 years operation (depending on the adjusted measuring interval)
high accurate, robust ceramic pressure measuring cell for different measuring ranges (i.e. 1 bar, 2 bar, etc.)
diameter independent fixing device, suitable for all standard top pieces
The new MDS Dipper-TEC sets new standards in regards to operation and data-security, as well as functionality!

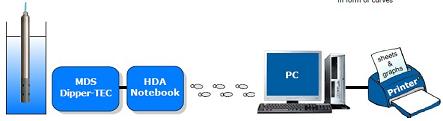

Data Transfer to PC
Water Level Sensor/Temperature Sensor/Conductivity Sensor
Integrated robust, high accuracy pressure and temperature transducer with excellent long-term stability as well as conductivity sensor with 4 electrode technique.

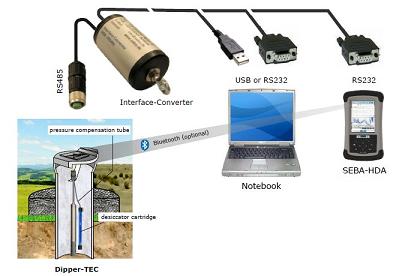

Operation with HDA or Notebook
Robust HDA for the rough field operation as alternative to a notebook. Vibration, impact, dust and water resistant housing according to IP67 for operation between -30°C up to +60°C.
Long durability up to 30 hours.
Simple operation resp. input of parameters (i.e. of control values) via TFT-colour-LCD-touchscreen or pin.
Included in the delivery:
Operation software SEBAConfig for simple programming, adjustment and operation of SEBA Data Loggers (e.g Dipper-3), as well as for transmission of the stored measuring values to PC.
Evaluation software MGMDS/MLMDS CE for plausibility check of stored measuring data in form of curves and lists.
Of course, your data logger can directly be connected to a PC (e.g. Notebook) or to a data transmission modem, thanks to its serial interface.
Evaluation with PC
For the data evaluation, pre-programmed routines are available for the client - which guarantee an easy operation.
Evaluation (Software MGMDS / MLMDS)
Lists
single measured values with date and time
daily middle- and extreme values
conversion of measured values with mathematical functions
Graphic
parameter lines with zoom and fade-cross functions
hard-copy routines multi
parameter graphs plot-routines
Read out- and Configuration Software SEBAConfig
configuration of data logger
output in ASCII-format for the use with standard software for graphic and table-calculations
special routine for data transmission to UNIX systems
Technical Data
Data Logger (MDS Dipper-TEC)
SMD-technique with auto-testing routine
16 Bit microprocessor
1 MB Flash-memory for approx. 80,000 values
Watch-Dog function for the control of micro-processor activities
serial communication interface RS 485
real-time clock
power supply with exchangeable lithium battery sufficient for > 8 years (with 60 min. measuring interval)
operation temperature: -20°...+70°C
Storage of recorded data:
Storage of recorded data in real-time
16 bit resolution
optimized memory usage through binary data-structure with date and time
observation function (timestamp, control value)
storage of control values
measuring interval: 1 min. to 45 days
Housing:
pressure-watertight metal housing (V4a steel)
supply- and adaption unit with integrated desiccator and
pressure compensation tube
material: anti-corrosive steel V4a
dimensions:Ø 40mm, 480mm length
installation device in top pieces (for diameter of 2”and above)
Pressure Sensor for water level measurement
robust ceramic-pressure sensor with excellent long-term stability
accuarcy: < 0.1% = <1cm with 10m measuring range
long-term stability: ±0.1% / years
measuring range: 10 / 20 / 30 / 40m etc. resp. on request
Temperature Sensor
NTC30-temperature sensor element with polynomial lineraization
measuring range: -5...+50°C
accuarcy:± 0.1°C
Conductivity Sensor (incl. Salinity)
4-electrode measuring cell
measuring range: 0..200μS/cm or 0..2mS/cm or 0..20mS/cm or 0..200mS/cm
accuracy: ±0.5%
operation temp.: 0..50°C
pressure range: 0..50 bar
SEBA-HDA
Processor/memory: Intel PXA 255 X-Scale CPU 200-800 MHz/64 MB SDRAM, 64 MB NAND Flash
Display: QVGA, 240x320 pixel, colour TFT with touchscreen and front light
Operating temperature Humidity: -30 °C up to +60 °C
resisistance: MIL-STD 810F method 507.4
Drop: 26 drops from 1.2 m on concrete
Protection class: IP 67
Size: Length: 165mm, Width:95mm, Height:45mm
Weight: 490 g incl. battery
Battery: 3,800mAh NiMH-battery for 12–30 hours operation
Operating system: Windows Mobile
Connections: 1 x USB-B Slave (12 Mbps),
1 x RS232 (115 Kbps)
1 x Charging, 2 x CF-slot type II
Keyboard: 10 keys, softkeyboard for input of
alpha-numerical characters
Included in delivery:
Battery charger
Software SEBAConfig CE
MGMDS/MLMDS CE for presentation of tables and graphs
Producing Area：Germany
