Data Logger
Special Features
Measuring system for the observation of groundwater measuring sites, pumping tests, construction areas, Surface water levels
Made of stainless steel
High data security due to additional flash-memory
Watch-dog-function for high operation security
Maintenance-free, battery life time >10 years, exchangeable battery
Installation in tubes from 1” diameter
Optional connection via Bluetooth
Application in the field Data readout with Observation of wells Evaluation Software
SEBA-HDA
Description
The new SEBA Data Logger type MDS Dipper-3(T3) is the consequential further development of the well proven MDS Dipper for continuous registration in ground- and surface water, with special focus to the operation and data security:
A watch-dog-function, integrated in the MDS-Dipper- T3 supervises continuously the microprocessor activities and so it provides a high operation security. Undefined system conditions are recognized immediately and eliminated by the Watch-dog- function.
The MDS Dipper-3(T3) is equipped with a Flash- memory (Flash-RAM). The acquired measuring data are stored in a ring memory organisation. Due to the described double data storage, you have access to the complete measured data in the archive data backup, even in case of breakdown of the power supply!
Further important characteristics of the MDS Dipper-3(T3)
robust housing of anti-corrosive steel with high chemical resistance for installation in tubes from 1" diameter
exchangeable lithium batteries for >10 years operation (depending on the adjusted measuring interval)
high accurate, robust ceramic pressure measuring cell for different measuring ranges (i.e. 1 bar, 2 bar, etc.) and temperature sensor for 0...25°C or 0...50°C
with diameter independent fixing device, suitable for all standard top pieces
So the new MDS Dipper-T3 sets standards in regards to operation security, data security and functionality!

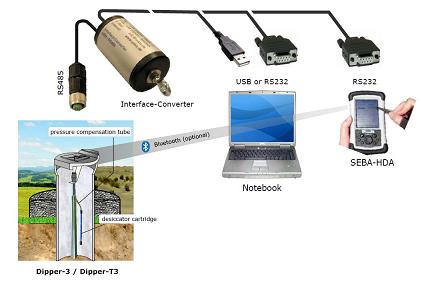

Data transfer to PC
water level sensor,water temperature sensor
Integrated robust, high accuracy pressure and temperature transducer with excellent long-term stability.
Operation with handterminal HDA or notebook PC
Robust HDA for the rough field operation as alternative to a notebook. Vibration, impact, dust and water resistant housing according to IP67 for operation between -30°C up to +60°C. Long durability up to 30 hours.
Simple operation resp. input of parameters (i.e. of control values) via TFT-colour-LCD-touchscreen or pin.
Included in the delivery:
Operation software WBedien CE for simple programming, adjustment and operation of SEBA Data Loggers (i.e. MDS-Dipper), as well as for transmission of the stored measuring values to PC.
Evaluation software MGMDS/MLMDS CE for plausibility check of stored measuring data in form of curves and lists.
Of course, the data logger MDS Dipper-T3 can be connected directly to a PC (i.e. Notebook) or to a data transmission modem, due to serial interface.

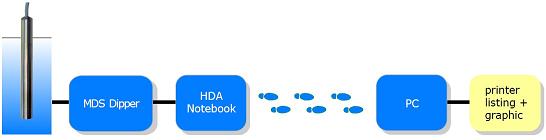

Evaluation of measured values with PC
For the evaluation of data, programmed routines are available - and so easy operation is guaranteed.
Evaluation (Software MGMDS / MLMDS)
Listing
single measured values with date and time
daily middle- and extreme values
conversion of measured values with mathematical functions
Graphic
parameter lines with zoom and fade-cross functions
hard-copy routines
multi parameter graph
plot-routines
Read-out and configuration Software WBedien
configuration of data logger
change to ASCII-format for use with standard software for graphic and table-calculations
special routine for data transmission to UNIX systems
Technical details
Data Logger MDS Dipper-3(T3)
SMD technique with auto-testing routine
16 bit microprocessor storage of control values
1 MB Flash-archive memory for approx. 480.000 measured values
watch-dog for control of the microprocessor activities
serial communication interface RS 485
optional connection via Bluetooth
real-time clock
analog input: water level and temperature
power supply with exchangeable lithium battery, sufficient for approx. 10 years (with 60 minutes interval)
operating temperature: -20…+70°C
Storage of measured values:
Storage of measuring values in real-time
16 bit resolution
binary data-structure with date and time (every fragment of memory can be reconstructed)
observation function (timestamp, control value)
storage of control values
measuring interval: 1 minute up to 45 days
Housing:
water pressure-tight housing of anti-corrosive steel
supply- and adaption unit with integrated desiccator and pressure compensation tube
material: stainless steel
dimensions: 22 mm dia., 270 mm length
installation device in top pieces (for diameter of 1” and bigger)
Pressure Sensor for water level measurement
robust pressure sensor with excellent long-term stability
accuracy: 0,05 % = 1 cm at 20 m measuring range
long-term stability: 0,1 % / year
temperature stability: 0,01 % / K
measuring ranges: 2 / 10 / 20 / 40 / 100 / 200 m etc. resp. on request
Temperature Sensor (NTC30 sensor element polynomic linearised)
measuring ranges: -5...+50°C,± 0,1°C
system length: up to max. 1000 m
special cable: special cable: screened round cable with pressure compensation tube fix mounted or pluggable (prolongable)
SEBA-HDA
Size: Length: 165 mm, Width: 95 mm, Height: 45 mm
Weight: 490 g including battery
Protection class: IP 67
Drop: 26 fall from 1,2 m on concrete
Operating temperature: -30 °C till +60 °C
Humidity resistance: MIL-STD 810F method 507.4
Processor/memory: Intel PXA 255 X-Scale CPU RECON200 - 200 MHz, 64 MB SDRAM, 64 MB NAND Flash
Display: 1/4 VGA, 240 x 320 Pixel, colour TFT display with touch-screen and front light
Battery: 3.800 mAh NiMH-battery for 12-30 hours operating
Operating system: Windows Mobile 2003
Connections: 1 x USB-B Slave (12 Mbps),
1 x RS232 (115 Kbps)
1 x Charging, 2 x CF-slot type II
Keyboard: 10 keys, onscreen qwerty softkeyboard
Included in delivery:
battery-charger
software SEBAConfig CE
MGMDS/MLMDS CE for presentation of lists and graphs
Producing Area：Germany
