Data Logger
Special Features:
Data logger with integrated encoder for measurement and storage of water level fluctuations with integrated LC-display
Adaption to all conventional measuring gauges possible or "Stand-alone" instrument for desk mounting
Serial interface RS232
Internal power supply with battery as buffer in case of power failure
Enviromental monitoring Water spring Measurement in rivers Staff gauges
System Description
The SEBA Surfloat-2 is a data logger with integrated rugged, float-driven encoder for measurement and storage of water level fluctuations.
As a "stand-alone" instrument, the Surfloat-2 can be operated with float & counter weight and also with the reliable float cable which is free of slip and slide effects.

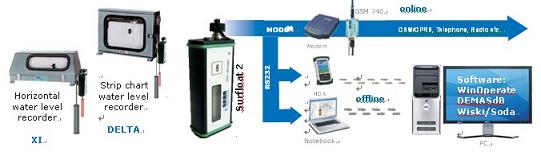

Furthermore, the Surfloat-2 is perfectly suitable for adaptation to all conventional float operated water level recorders (e.g. SEBA strip-chart water level recorder Delta, XI Horizontal water level recorder, etc.).
The Surfloat-2 is now standardly equipped with an LC-display and an RS232 interface.
Thanks to the LC display, it allows customer friendly handling: if the LC display is activated and if the float-wheel is turned simultaneously, the desired measuring value can be adjusted by the customer. The instrument can be operated by an external and internal power supply. In case of an external
Technical Data
Power Supply: 3,6V internal lithium battery resp. 6-24V external battery
Interfaces: 1x RS232 (opt. additionally 1x RS485)
transmission protocoll MDS
Memory: 1 MB serial flash memory
(480.000 measuring values)
Display: LC-Display (8 characters)
Keyboard: 1x membrane key
Power Consumption: 20 µA (sleep mode)
Realtime Clock: RTC (+/- 1 min per month at 25°C)
Channels : 1
Measuring interval: 5 sec. up to 45 days
Storage interval: 5 sec. up to 45 days
Encoder:with ball chain or float-cable 0,8mm diam.
Resolution: high resolution in mm
Accuracy: <1 cm
Dimensions: 125 x 60 x 35 mm
Weight: 250 gr.
Protection class (Housing): IP 65
Material (Housing): Aluminium
Operation Temperature: -30° ... +70°C
Max. Humidity: 0 ... 95 %
Producing Area：Germany
