CM215 Apex Sensor Mount for Aluminum Tripod

The CM215 is a wind sensor mount that allows the wind sensor to be attached to one of our aluminum tripods without using a crossarm. The sensor mount is "reversible" to accomodate wind sensors with either a 0.75" or 1.0" diameter.

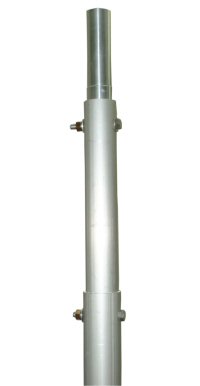

The photo at right shows the CM215 protruding from a tripod mast. When deployed, a wind sensor would attach to the top of the CM215.

Features

Mounts wind sensor on top of CM110, CM115, or CM120 Aluminum Tripod
Does not requires a crossarm
Lightning rod can be attached to some sensors; contact CSI for details

Specifications

Diameter: 0.75" and 1.0"
Material: Aluminum

CM220 Right-Angle Mounting Bracket

The CM220 Right-Angle Mounting Bracket can attach a sensor with a vertical pipe mount (e.g., most wind sensors) to a CM202, CM204, or CM206 crossarm. It is compatible with pipes that have a 1.0" to 1.5" outer diameter.
The CM220 is creased during manufacture to allow pipes of varying diameters to seat snugly into the bracket. The 90° bend in the middle of the bracket allows the CM220 to fill roughly the same role as the 1049 or 17953 NU-RAIL Offset Crossover fitting.

Features

Right angle mounting bracket
Vertically mounts a sensor to a crossarm

Specifications

Consists of a rectangular bracket and two 1.5" u-bolts

CM235 Magnetic Mounting Stand

The CM235 consists of rectangular plate, mounting bracket, u-bolts, lock washers, and nuts. It allows one peripheral with a magnetic base (typically antennas) to be mounted to a crossarm or mast (1.0" to 2.1" OD). Compatible peripherals include certain GPS or short-range omnidirectional antennas fitted with magnetic bases.

Producing Area:USA
