CM240 Leveling Base and Mount for Rain Gages

The CM240 Leveling Base mounts and levels a CS700, TB4, or 385 tipping bucket raingage. The level base ensures more accurate measurements.

Features

The CM240 attaches to a CM300-series pole, or to a user-supplied 1.5 IPS (1.9-inch OD, unthreaded) pipe. The pipe should be long enough to place the gage's orifice at a one-meter height. The pole or pipe can be placed directly into a concrete foundation, attached to a concrete foundation using j-bolts, or self-supported with legs.

CS705 Tipping Bucket Snowfall Adapter

The CS705 is a snowfall adapter for tipping bucket rain gauges. It converts an 8" rain gage to a year-round rain and snow gage. The CS705 consists of an antifreeze reservoir, over-flow tube, and catch tube. Snow captured in the catch tube dissolves into the antifreeze. The melted snow raises the level of the antifreeze and water solution. The mixture flows through the over-flow tube into the tipping bucket where it is measured by the tipping bucket mechanism.

Features

Attaches to a TE525WS rain gage
Catches snowfall in funnel extension; snowfall melts in antifreeze, then moves through siphon tube to tipping bucket mechanism
Not suitable for real-time precipitation measurements
Adapter ships with the funnel and mounting bracket kit

Specifications

Compatible Tipping Bucket: TE525WS (cannot directly use the TE525, TE525MM, CS700, TB4 or TB4MM. You can convert the TE525 and TE525MM to a TE525WS by returning them to Campbell Scientific.)
Material: Powder-coated aluminum
Capacity: 8” of liquid @ -20°C (assuming 1:0 starting ratio of antifreeze : water)
Antifreeze Reservoir Capacity: 2.5 gallons
Recommended Antifreeze Type: 1:1 mixture of propylene glycol and ethanol (PGE).
PGE is available from Campbell Scientific in a package of four, one-gallon containers. Antifreeze can only be shipped in multiples of four gallons via UPS Ground and can not be shipped outside of the Continental US.

CM300 23-inch Mounting Pole

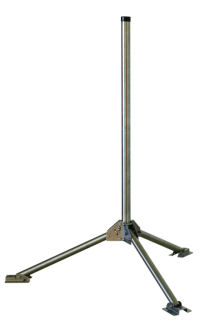

The CM300 consists of a 23-inch-long, stainless-steel, 1.5-inch IPS vertical pole with a removable plastic dust cap. It is designed for mounting sensors, enclosures, or other instrumentation. It is an ideal mount for remote sensors such as a tipping bucket raingage or net radiometer. Our CS700, TB4, and 385 raingages are typically mounted to the CM300 via the CM240 Leveling Base.

Features

Several pedestal options are available to fit individual applications. They can be ordered as options to the CM300 or as separate items.

-PJ CM340 J-Bolt Pedestal Kit
-PS CM350 23-inch-Leg Pedestal Kit
-PL CM355 39-inch-Leg Pedestal Kit

Specifications

Material: Stainless Steel
Pipe Size: 1.5” IPS

CM305 47-inch Mounting Pole

The CM305 consists of a 47-inch-long, stainless-steel, 1.5-inch IPS vertical pole with a removable plastic dust cap. It is designed for mounting sensors, enclosures, or other instrumentation. It is an ideal mount for remote sensors such as a tipping bucket raingage or net radiometer. Our CS700, TB4, and 385 raingages are typically mounted to the CM305 via the CM240 Leveling Base.

Features

Several pedestal options are available to fit individual applications. They can be ordered as options to the CM300 or as separate items.

-PJ CM340 J-Bolt Pedestal Kit
-PS CM350 23-inch-Leg Pedestal Kit
-PL CM355 39-inch-Leg Pedestal Kit

Specifications

Material: Stainless Steel
Pipe Size: 1.5” IPS

CM310 56-inch Mounting Pole

The CM310 consists of a 56-inch-long, stainless-steel, 1.5-inch IPS vertical pole with a removable plastic dust cap. It is designed for mounting sensors, enclosures, or other instrumentation. It is an ideal mount for remote sensors such as a tipping bucket raingage or net radiometer. Our CS700, TB4, and 385 raingages are typically mounted to the CM300 via the CM240 Leveling Base.

Features

Several pedestal options are available to fit individual applications. They can be ordered as options to the CM300 or as separate items.

-PJ CM340 J-Bolt Pedestal Kit
-PS CM350 23-inch-Leg Pedestal Kit
-PL CM355 39-inch-Leg Pedestal Kit

Specifications

Material: Stainless Steel
Pipe Size: 1.5” IPS

Producing Area:USA
