Features:
Installation is easy, just “plug & drive.” Plug the tiny data logger into the OBDII port under the dash and begin recording trip details immediately.
Engine performance monitoring to keep your vehicles in top running condition.
Diagnostic trouble codes, freeze-frame sensor readings, and the ability to clear the vehicle’s check engine light.
Emissions readiness reports to check the status of the vehicle’s smog-control systems.
Stores up to 1200 hours of driving data depending on the logging interval and number of parameters selected. Download at any time and clear the memory, or simply let the newest data overwrite the oldest. Requires Fleet Management Software, sold separately.
Requires Fleet Management Software, sold separately.
To monitor engine performance, use a CarChip Fleet Pro in each vehicle. To monitor driver performance, issue each driver his own CarChip with a unique ID number. Drivers can quickly and easily take their CarChip with them from one vehicle to the next.

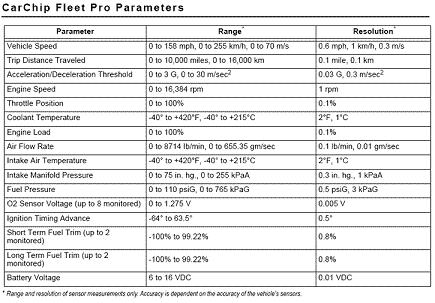

Monitor 4 out of 23 possible engine parameters
Specifications:
| Includes: | CarChip data logger (requires Fleet Management Software (#8186) to retrieve data) |
| Product Dimensions: | 1.80" x 1.00" x 1.32" (46 mm x 26 mm x 34 mm) |
| Software System Requirements: | Windows 98SE, ME, NT4.0, NT2000, XP, Vista; 5 MB free disk space |
| Operating Temperature: | -40° to +185°F (-40° to +85°C) |
| Primary Power, Connected to Vehicle: | -9 to 16 VDC, 80 mA with vehicle running, 17 mA with the vehicle’s power off |
| Primary Power, Connected to Computer: | USB powered |
| Backup Power: | Internal battery, minimum of 5 years total, with data logger not powered by vehicle or computer; 10-15 year life in normal use |
| Memory: | 2MB |
| Data Logging Capacity: | 300 hours maximum, depending on logging intervals and number of optional parameters selected |
Data Logging Capacity: Data logging capacity is determined by a combination of factors, such as logging intervals, number of optional parameters selected, and, if optional GPS is used, the logging interval used for GPS. Below is a chart of the approximate data logging capacity (in hours) available under various logging interval conditions. Results may vary.
| Speed Logging Interval | 1-4 Engine Parameters (with Logging Intervals) |
Optional GPS (with Logging Intervals) |
Hours Stored* |
| 5 seconds | No Parameters Logged | No GPS Logged | 1200 hours |
| 5 seconds | No Parameters Logged | 15 minutes | 1000 hours |
| 5 seconds | 4 @ 60 seconds each | 1 minute | 520 hours |
| 1 second | 4 @ 5 seconds each | 15 minutes | 90 hours |
| 1 second | 4 @ 5 seconds each | 1 second | 24 hours |
