The HOBO® Measurement & Verification System is a portable energy logging system used for measuring, analyzing and documenting building energy performance.

The system is a self-contained kit - making it convenient and economical to track the performance of building systems, such as HVAC units, and verify the impact of energy efficiency improvements.

Key features:

 Single-phase and three-phase models available
 Provides pre-wired energy measurement sensors for quick and easy set up
 Weather-proof enclosure for monitoring building performance in harsh environments

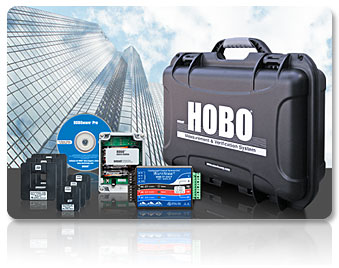

The energy measurement & verification system contains a 4-channel logger, kWh transducer (120-240 VAC), 50 and 200 Amp current transducers, voltage input leads, software, and accessories for a single circuit energy monitoring application (KIT-MV-1P) or a three-phase circuit energy monitoring applications (KIT-MV-3P), all housed in a rugged carrying case.

Energy Measurement & Verification System

Producing Area:USA
