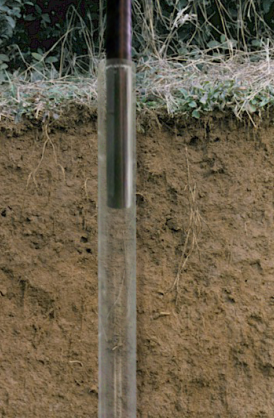

Root Scanning system enables plant scientist to obtain high resolution images in situ to research the development and growth of a plant's root. Its scan head can automatically rotate along with a circle. Using Clear root tube can achieve multi site measurement. Only 10 seconds the researchers can get whatever they want.

The users can put the scan head in multi depth and scan the roots distribution, the structure of the roots they scanned even the soil particles. Then the researchers can get the images of the root vertical distribution for analysis.

  Root analysis software features(Including Chinese Version):
● Non-destructive
● High-accuracy for root angel measurement
● Dynamic measurement
● Root distribution in soil with no distortion
● Convenient and portable for carrying and using
● Data Storage: Store in PC directly
● Power Supply: Computer USB port or external rechargeable battery or AC adapter
● Dimensions of Scan Head: 35.2cm(length)×7.1cm(diameter)
● Resolution: 4800×4800 pixels, Software Enhancement Resolution: 19200×19200 pixels (370 million pixels)
● Dimensions of Clear Tube: 7.1 cm (inner diameter)× 200 cm (long); customized available
● Scan Rate: 5 to 10 seconds (depending on Resolution)
● Each scan provides a 360-degree high- resolution image (22× 20cm), Imaging, without stitching
● Weight: About 1Kg
● Perfect speed for testing
● Allows observing root growth and behavior during an entire growing season or longer
● Get the profile image for the whole root system
● USB 2.0 for high speed data transfer Scanning different depths of roots
● Allows observing root growth and behavior during an entire growing season or longer
● Get the profile image for the whole root system

Specifications:

● Data Storage: Store in PC directly
● Power Supply: Computer USB port or external rechargeable battery or AC adapter
● Dimensions of Scan Head: 35.2cm(length)×7.1cm(diameter)
● Resolution: 4800×4800 pixels, Software Enhancement Resolution: 19200×19200 pixels(370 million pixels)
● Dimensions of Clear Tube: 7.1 cm (inner diameter)× 200 cm (long); customized available
● Scan Rate: 5 to 10 seconds (depending on Resolution)
● Each scan provides a 360-degree high- resolution image (22× 20cm), Imaging, without stitching

● Operation Temperture: 0℃～50℃,RH: 0～100% (no condensation)
● Weight: About 1Kg

Root analysis software features(Including Chinese Version):

● Root length
● Root average diameter
● total root area
● total root volume
● root tip count
● bifurcation count
● overlapping count
● distribution of root diameter
● Distribution of root tip length
● Define the section diameter with the unequal spacing. Automatically measure the length of each diameter section, Projection area, Surface
area, volume and the distribution parameter.
● Analyze the root color, and confirm the number of root survival. Output root’s the diameter, length, projection area, surface area and volume of different color roots.
● Enable to perform the Root Topology Analysis, and confirm the number of connection and relationship angle automatically.
