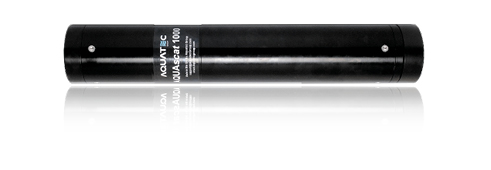

AQUAscat 1000S

AQUAscat 1000S

Suspended sediment profiler

AQUAscat  1000S

he AQUAscat 1000 represents a new generation of high frequency acoustic instrumentation. It has applications in sediment transport studies, including measurement of suspended sediment profiles, precision altimetry, dredge plumes and turbulence.

The AQUAscat transmits pulses of high frequency sound on up to four transducers, each of which may operate at a different frequency. It measures the sound scattered by sediment or other suspended materials at discrete spatial intervals programmable from 2  millimetres to 4 centimetres. For altimetry, this may span a few tens of centimetres; for monitoring sediment suspension profiles, a total range of around 1- 2 metres is typical; while dredge plume estimation may extend to 10 metres. The instrument is supplied in a subsea housing suitable for long-term unattended deployments. Batteries for various deployment schedules are available to order.

Features

Applications

Find out more

eatures

Uses acoustic backscatter method

4 different frequencies

Fixed transducers for repeat deployments
