CR720XL

Large I/O Module for CR7

CR720XLRequest a Quote

CR720XLAsk a Question

CR720XL

CR720XLImage Gallery

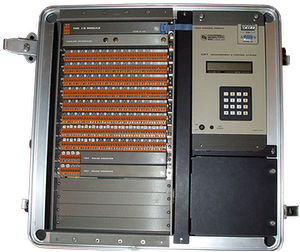

Either the CR720 or CR720XL I/O Module is required in each CR7 System. The CR720XL provides regulated power for analog and digital functions, 16-bit A/D-D/A conversion (analog interface card), and a precision voltage reference. The CR720XL includes an I/O chassis and contains slots for up to fourteen I/O Cards.

  • Provides regulated power for analog and digital functions

  • Performs 16-bit A/D-D/A conversions

  • Contains slots for up to fourteen I/O Cards

  • Housed in the ENC 7XL

Note:We offer a number of components to add to existing CR7 systems; however, the components necessary for thermocouple psychrometry applications are no longer available.

Benefits and Features

  • Can be added to or removed from CR700X to support changing measurement needs
