Features

•Single fiber bi-directional transceiver with 2.488Gb/s downstream and 1.244Gb/s upstream

•1490 nm DFB laser and 1310 nm receiver

•SFP package

•3.3V power supply

•Digital Diagnostic Monitoring (DDM) function

•Low EMI emissions and ESD protection

•GPON class B+

•Compliant with ITU-T G.984.2 GPON

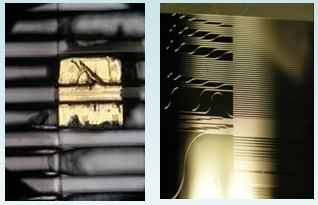

•Based on wafer level package technology

Applications

2.488 Gb/s Gigabit Passive Optical Networks (GPON) – OLT side

Part Number Tx/Rx Wavelength (nm) LD/PD DDMI RSSI Factor GPON-OLT 1490/1310 FB/APD YES YES SFP GPON-ONU 1310/1490 FB/APD YES YES SFP Parameter Symbol Min Typical Max Unit Supply Voltage Vcc 3.1 3.3 3.5 V Operating Temperature Topc 0 70 ℃ Operating Temperature Topi -20 85 ℃
