Powerful Vehicle ManagementTool for Business Owners.
The CarChip Pro (# 8226) data logger records vehicle trip and performance data to provide a detailed history of driver performance and vehicle operation.
Recorded data includes; trip start and end times, vehicle speeds, rates of acceleration and braking, and any detected OBDII trouble codes.
The CarChip Pro also provides additional vehicle monitoring capabilities including the logging of additional engine data parameters and detailed “accident” data for all sudden stops. It can also emit an audible alarm whenever a driver exceeds user-determined speed limits. Using the included CarChip software, you can see the logged data in summary, record, plot, or table formats and also export it to other applications.
The CarChip Pro data logger plugs into your car's OBDII port and is compatible with most passenger cars and light trucks model years 1996 and later. All CarChip Pros require CarChip software version 2.3 or later.
Easy installation: plug it in under the dash, drive your vehicle, then download the data to your PC.
- Up to 300 hours of trip details (newest data records over oldest)
- Complete trip details including time/date, distance traveled, speed (1- or 5-second intervals)
- Log up to 4 of 23 engine parameters
- Provides individual graphs and summary reports
- Records/shows extreme acceleration/braking
- Allows user-set thresholds for audible alarms, speed, acceleration, and braking (post-drive reports/graphs show when, for how long, and number of times thresholds were exceeded)
- Automatic accident log with last 20 seconds speed data before impact
- Assign trips as business/commute/personal
- Calculate gas mileage
- View/Reset engine diagnostic trouble codes (check-engine light)
- Test for preliminary emissions status
- Software (included) lets you review/clear diagnostic codes, view summaries/detail reports, and copy data to spreadsheets for further analysis
Specification:
| Includes: | CharChip data logger, Software on CD, and USB cable for downloading data |
| Product Dimensions: | 1.80" x 1.00" x 1.32" (46 mm x 26 mm x 34 mm) |
| Software System Requirements: | Windows 98SE, ME, NT4.0, NT2000, XP, Vista; 5 MB free disk space |
| Operating Temperature: | -40° to +185°F (-40° to +85°C) |
| Primary Power, Connected to Vehicle: | -9 to 16 VDC, 80 mA with vehicle running, 17 mA with the vehicle’s power off |
| Primary Power, Connected to Computer: | USB powered |
| Backup Power: | Internal battery, minimum of 5 years total, with data logger not powered by vehicle or computer; 10-15 year life in normal use |
| Memory: | 512KB |
| Data Logging Capacity: | 300 hours maximum, depending on logging intervals and number of optional parameters selected |

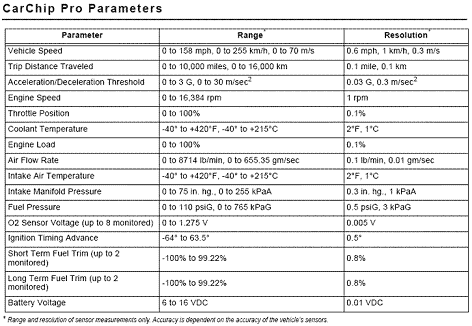

Select from over 20 engine parameters
Producing Area:USA
