PR2 Soil Moisture Profile Probe

PR2 Soil Moisture Profile Probe


  • Soil moisture content - not just trends

  • Low salinity and temperature sensitivity

  • Portable meter option for convenient multi-site measurement

  • Out of the box solution - supplied with soil calibrations for common soil types

  • IP68 protected connectors for versatile connectivity

  • Uses access tubes for easy probe insertion and removal




No other soil moisture probe system enables you to monitor your soil water profiles with such ease and flexibility. Install an access tube into the soil, insert the PR2 Profile Probe and press the HH2 [Read] button to display an instantaneous reading, or connect the PR2 to a data logger (DL6 or DL2e) and leave the system to record soil moisture changes over time.

The PR2soil moisture probeis built around newly patented sensing technology which provides unprecedented performance in all soil types, with minimal influence from either salinity or temperature. The PR2/4 model measures soil moisture at 4 depths down to 1000px or the PR2/6 measures at 6 depths down to 2500px.

The PR2 Profile Probeaccess tube requires an installation hole 27mm in diameter, allowing easy installation and minimal soil disturbance. Access tubes are manufactured to strict tolerances and are exceptionally strong and durable in the soil. Correct installation is essential and we recommend the use of our specially designed augering equipment.

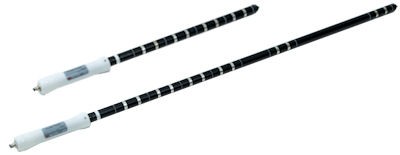

The PR2 Profile Probeis available in two sizes to measure to a depth of1000px or 2500px
.

ThePR2/4 has sensing elements at 10/20/30/1000px

PR2 Soil Moisture Profile Probe

The PR2/6 has sensing elements at 10/20/30/40/60 and 2500px

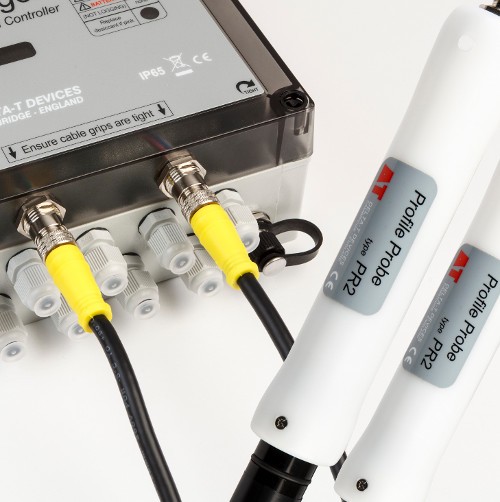

Data LoggingPR2 Soil Moisture Profile Probe
Delta-T offers two types of data logger with dedicated PR2 Profile Probe input channels and connectors:

The DL6 Data Logger can log one PR2/6 or one PR2/4 Profile Probe.
The GP2 Data Logger can log up to two PR2/6s or three PR2/4s.


PR2 Soil Moisture Profile Probe

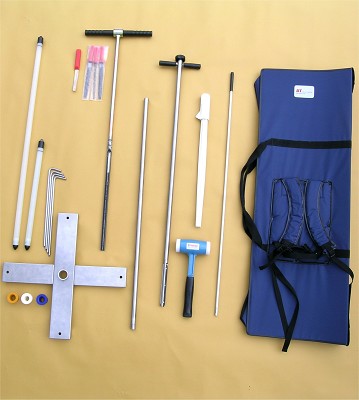

Complete Auger Kit
Access tube installation is vital.
Click here for information about our augering equipment
