SM300 - Soil Moisture and Temperature Sensor

SM300 - Soil Moisture and Temperature Sensor

SM300 - Soil Moisture and Temperature Sensor

  • Research grade soil moisture sensor

  • ±2.5% accuracy

  • Good temperature and salinity stability

  • Soil temperature (only when buried)

  • Easy data logger connection (0 - 1V DC)

  • Ideal for phenotyping based research

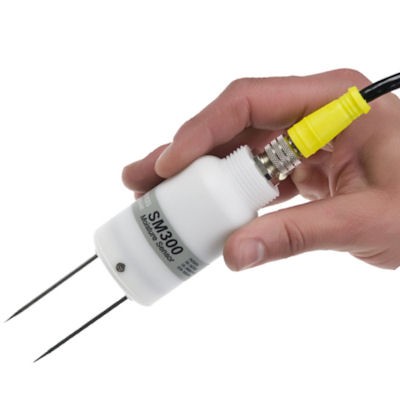

The SM300 Soil Moisture Sensor offers convenience and cost saving by combining soil moisture and temperature measurement. It can be used in all soil types, including saline soils. Engineered for reliability and high performance, the SM300 is well suited to both research and agricultural applications.

The SM300 Soil Moisture Sensor is a dual purpose soil moisture probe - it can be used both with the HH2 Meter for instant readings, or left in-situ for continuous monitoring with a data logger


Data logging
The SM300 Soil Moisture Sensor is compatible with all Delta-T Devices Loggers and its 0 to 1V DC output can be handled by most other types of logger. Temperature is measured by a 10k precision thermistor mounted in the sensor body - the SM300 should be fully buried to accurately measure soil temperature


Instant readings with the SM300 Kit
The SM300 Soil Moisture Sensor can be used with the Delta-T HH2 hand-held Moisture Meter in the SM300 Soil Moisture Kit to take instant moisture measurements (but the HH2 does not display temperature readings - the equilibration time would be too slow for instant measurements).


Easy installation
The SM300 Soil Moisture Sensor is buriable and its cylindrical shape makes it easy to install in augered holes (45mm diameter).The threaded base of the sensor can be connected to optional 1250px and 2500px extension tubes. The sharp twin pin design minimises soil and substrate disturbance and allows for superior contact for more accurate measurements.


Research
The SM300 Soil Moisture Sensor measures volumetric soil moisture content with 2.5% accuracy and temperature with 0.5 deg C accuracy. It offers precision and reliability at an affordable price.


Irrigation
Accuracy and ease of use make SM300 Soil Moisture Sensors well suited to irrigation applications. Readings can be used to optimise irrigation scheduling, or the SM300 can be installed as part of an automatic irrigation system. The sensor's compact size allows it to be installed in plant pots or grow bags.


SM300 Soil MoistureSensor improvements
The SM300 incorporates the following improvements over the earlier SM200 design:

  • Improved 2.5% accuracy

  • Temperature sensor included

  • White body to reduce solar heating effects

  • Robust M12 connectors and cabling
